What Are Bending Pogo Pin Connectors and How Do They Work

Bending Pogo Pin Connectors give you a reliable way to create electrical connections in tight spaces. Each connector uses a spring-loaded design that helps keep the contact firm and steady. The unique angled tip lets you connect at a 90-degree angle, which saves space inside your device. You will find these connectors in many electronic products because they offer stable performance and easy alignment. Unlike standard pogo pins, these connectors use their bend and sharp tip to fit where straight pins cannot.

The global market for pogo pin connectors in electronics is growing fast:

• USD 1.2 Billion in 2024
• Expected to reach USD 2.5 Billion by 2033
• CAGR of 9.1% from 2026 to 2033

Key Takeaways

• Bending Pogo Pin Connectors save space with their unique 90-degree design, allowing connections in tight areas where straight pins cannot fit.
• The spring-loaded mechanism ensures a stable electrical connection, even in devices that move or vibrate, making them reliable for everyday use.
• These connectors are cost-effective and durable, supporting over a million connection cycles without losing performance.
• Bending Pogo Pin Connectors are widely used in mobile phones, wearables, and medical devices, helping engineers create smaller and more powerful products.
• Their sharp tips allow for quick and accurate connections, reducing contact errors and improving device performance.

Bending Pogo Pin Connectors Overview

Definition

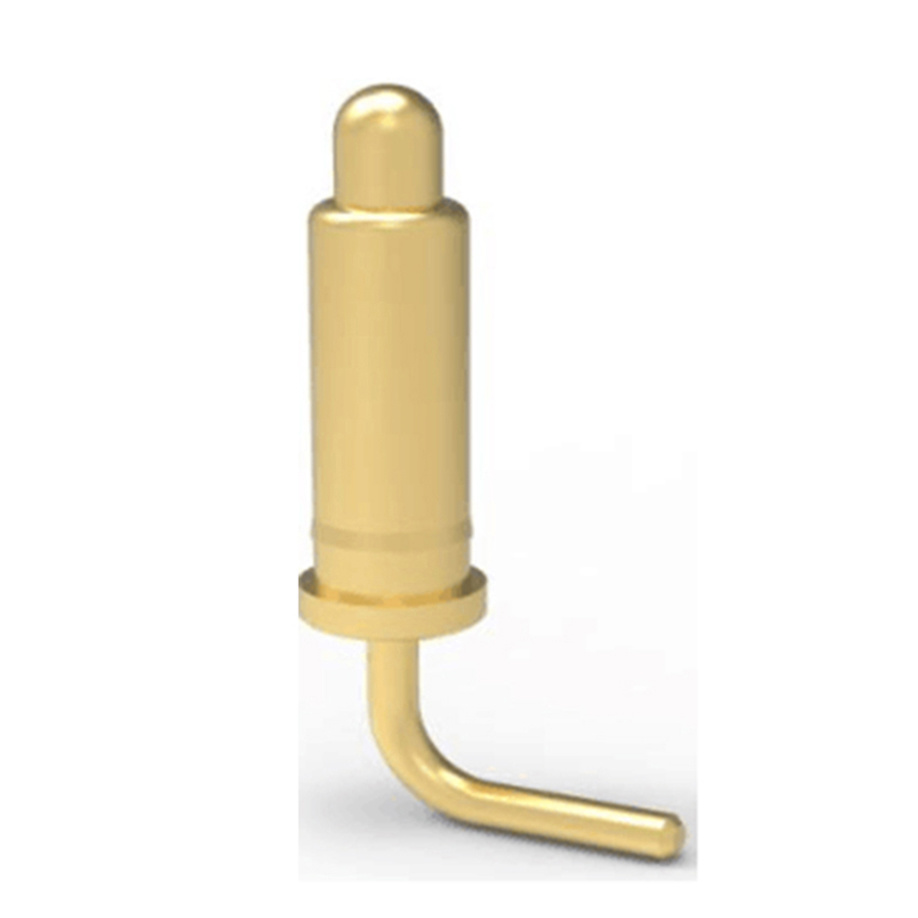

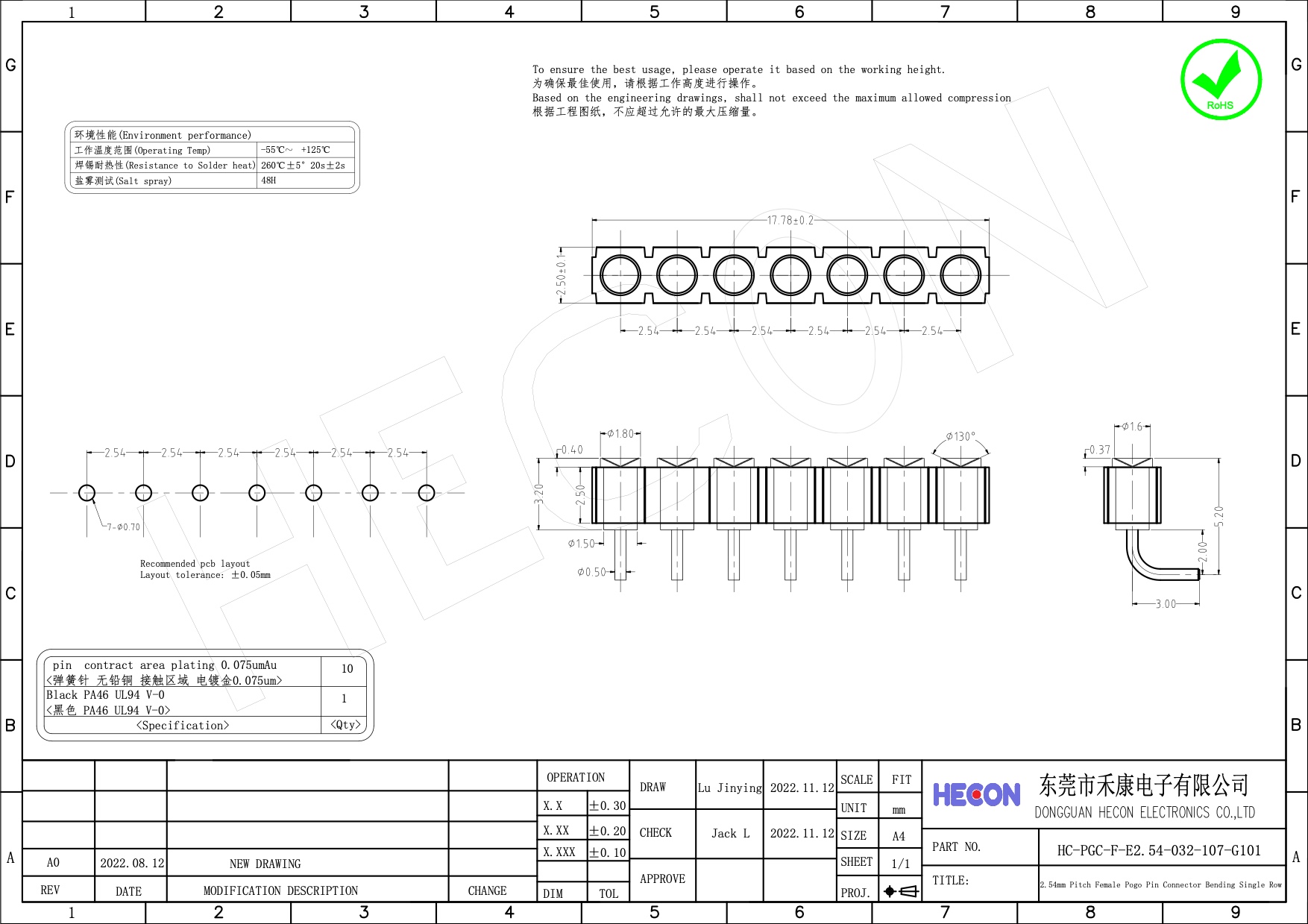

You use Bending Pogo Pin Connectors when you need a strong and flexible electrical connection in a small space. These connectors have a spring-loaded pin that bends at a right angle. This design helps you fit them into tight spots where straight connectors will not work. The spring inside each pin keeps the connection steady, even if the device moves or shakes. You often see these connectors in electronics that need reliable contact but have limited room.

Key Features

Bending Pogo Pin Connectors stand out because of their special design and materials. You get a connector that works well in many situations. Here are some important features:

• The angled pin lets you connect at a 90-degree angle, which saves space inside your device.
• The spring mechanism keeps the contact firm, so you do not lose connection easily.
• The sharp tip helps you make a quick and secure connection, even if the surfaces are not perfectly lined up.
• You can use these connectors many times because the spring and materials last a long time.

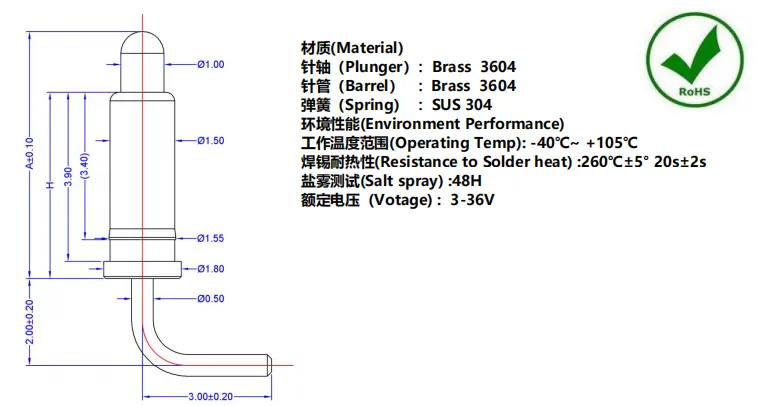

Tip: The materials used in these connectors make them strong and reliable. You will find different metals in each part:

• Plunger: Beryllium Copper, SK4 Tool Steel, Brass
• Barrel: Brass, Phosphor Bronze, Beryllium Copper
• Spring: Stainless Steel, Music Wire, Beryllium Copper Wire

You might wonder about the cost and how easy it is to get these connectors. Miniaturized spring-loaded pins, like those in Bending Pogo Pin Connectors, often cost less than traditional pogo-style pins. Manufacturers use fully automated, high-speed processes to make them, which helps lower the price and makes them more available.

You can see why many engineers choose Bending Pogo Pin Connectors for modern electronics. They give you a space-saving, reliable, and cost-effective solution.

Design and Mechanism

Spring Mechanism

You will find that the spring mechanism is the heart of Bending Pogo Pin Connectors. Each connector uses a barrel, a plunger, and a coil spring, often made from brass or copper alloys. The spring sits inside the barrel and pushes the plunger outward. When you press the connector against a contact point, the spring compresses. This action creates a steady force that keeps the connection strong.

• The spring exerts force when you compress the pin, which keeps the contact pressure consistent.
• This design allows the connector to adjust if the surfaces do not line up perfectly.
• You get a reliable electrical connection, even if the device moves or shakes.

The spring mechanism also helps in high-frequency applications. You can count on stable contact pressure, which is important for fast data transfer. The self-adjusting spring keeps the connection tight and prevents signal loss. The design also reduces signal problems, so your device works better.

1. The spring adapts to changes in pressure, which helps signals move efficiently.
2. The connector resists shock and vibration, so it lasts through many uses.
3. The spring keeps pushing against the contact point, so you do not lose the connection.

Note: Gold and nickel plating on the metal parts improve wear resistance and lower contact resistance. This helps your device work well for a long time.

90-Degree Contact

Bending Pogo Pin Connectors stand out because of their 90-degree contact design. You can use them in tight spaces where straight connectors will not fit. The right-angle bend lets you connect parts side-by-side or in corners. This feature saves space and gives you more options when you design your device.

You will notice that this design makes assembly easier. You can connect parts from different angles, which speeds up the manufacturing process. The 90-degree bend also helps protect the connector from side forces, making it last longer. Shorter signal paths help reduce electromagnetic interference, so your device performs better.

Sharp Tip Function

The sharp tip on Bending Pogo Pin Connectors gives you another advantage. You can use these connectors for small or narrow contact points. The sharp tip focuses the pressure, which helps make a stable connection even in tiny spaces. This feature works well with micro components and in places where you need quick, accurate contact.

The tip can come in different angles, such as 30°, 60°, or 75°. These shapes help the connector touch the right spot every time. You will see fewer contact errors, which is important for devices that need fast responses and tiny contact areas.

Tip: The sharp tip also helps the connector break through dust or oxide layers on the contact point. This keeps the connection clean and reliable.

Bending Pogo Pin Connectors use strong materials and smart designs to give you a connector that works in many situations. You get a long-lasting, reliable, and space-saving solution for your electronic devices.

Applications

Electronic Devices

You see Bending Pogo Pin Connectors in many of the devices you use every day. These connectors help engineers design smaller and more powerful products. You can find them in:

• Mobile phones
• Portable gadgets

These connectors make it possible to fit more features into a compact space. They allow manufacturers to create thinner and lighter devices without losing performance. The unique structure of these connectors lets you adjust the height between two circuit boards, which helps reduce the overall size of your device. Pogo pins also support high-density connections, so you get reliable performance even as devices shrink.

Bending Pogo Pin Connectors keep your data safe and your device working smoothly. Their spring-loaded design holds a steady connection, even if your phone or gadget moves or shakes. This means you do not have to worry about losing data or having your device disconnect during use. You can also connect and disconnect these pins many times without wearing them out, which is important for devices that need regular updates or repairs.

Tip: These connectors help protect your device from problems like corrosion, dust, or extreme temperatures. Gold and nickel plating on the pins keep the contact points clean and reliable.

Testing and Charging

You will find Bending Pogo Pin Connectors in many testing and charging systems. These connectors play a key role in making sure devices work as expected before they reach you. They help engineers test circuit boards quickly and accurately. You also see them in charging docks for wearables and portable devices.

These connectors support reliable data transfer and power delivery. The spring mechanism keeps the contact pressure steady, even during vibration or movement. This is important for automated test equipment, where you need to connect to many points at once. You can count on these connectors to handle repeated connections without losing effectiveness.

Bending Pogo Pin Connectors help you keep up with the trend of smaller and smarter devices. They let you design products that are both compact and reliable, making them a top choice for modern electronics.

Comparison to Standard Pogo Pins

Structural Differences

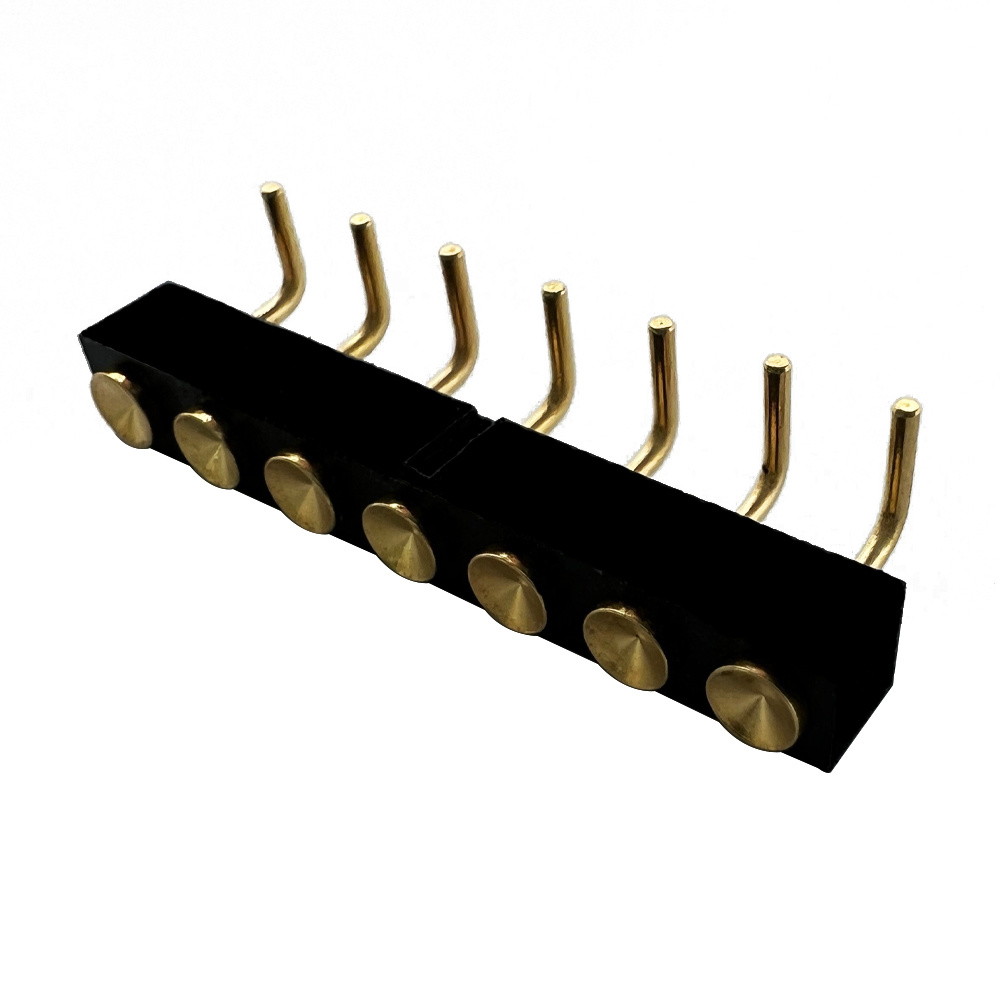

When you look at Bending Pogo Pin Connectors and standard pogo pins, you notice some clear differences in their shapes and how you use them. Bending Pogo Pin Connectors have a right-angle bend. This bend lets you connect parts that sit side by side or in tight corners. Standard pogo pins usually have a straight design. You use them when you need a direct, straight-line connection.

You also see differences in size. Bending Pogo Pin Connectors often have a much lower profile. They can sit closer to the circuit board, which helps you save space inside your device. Standard pogo pins stand taller above the board. This makes them less useful when you want to build thin or compact electronics.

Here are some main structural differences:

• Bending Pogo Pin Connectors have a 90-degree angle for side connections.
• Standard pogo pins have a straight pin for direct, vertical connections.
• Bending connectors fit better in small or crowded spaces.
• Standard pogo pins work best when you have more room.

Tip: If you need to fit more features into a smaller device, you should look at the shape and height of your connector.

Performance Differences

You can compare the performance of these connectors by looking at several key metrics. These include height above the circuit board, how far the pin can move (mid-stroke travel), current rating, and more. The table below shows how ultra low profile Bending Pogo Pin Connectors stack up against standard pogo pins:

You see that Bending Pogo Pin Connectors have a much lower profile. This helps you design thinner devices. They also offer steady contact resistance and a long cycle life, so you can use them many times without problems. Standard pogo pins can handle higher voltages and sometimes more current, but they take up more space.

If you want to build compact, reliable electronics, Bending Pogo Pin Connectors give you a strong choice. You get good electrical performance and save space at the same time.

You gain many benefits when you use Bending Pogo Pin Connectors in your designs.

• They save space with a low profile and compact footprint.
• You can rely on their stable electrical performance, even in devices that move or vibrate.
• They work well with automated manufacturing and make testing easier.

Their bent structure fits perfectly in small devices like smartwatches and sensors. The demand for these connectors keeps growing as more industries need miniaturized, reliable solutions.

FAQ

What makes bending pogo pin connectors different from straight pogo pins?

You get a 90-degree angle with bending pogo pin connectors. This design lets you fit them into tight spaces where straight pins cannot go. You can save space and create more compact devices.

Can you reuse bending pogo pin connectors many times?

Yes, you can. The spring-loaded design allows you to connect and disconnect these pins over a million cycles. You do not have to worry about wear or loss of performance.

Where do you usually find bending pogo pin connectors?

You often see these connectors in mobile phones, wearables, medical devices, and test equipment. They help you create reliable connections in small or crowded spaces.

How do you keep the connection stable if your device moves?

The spring inside each connector keeps steady pressure on the contact point. You get a reliable connection even if your device shakes or vibrates.

Do bending pogo pin connectors work for both data and power?

Yes! You can use these connectors for data transfer and power delivery. They support fast signals and can handle high current in many electronic devices.
