2.54mm Euro DIN41612 Female IDC Type 3rows 96P(3x32P) Connectors
| Product name: | 2.54mm Euro DIN41612 Female IDC Type 3rows 96P(3x32P) Connectors |
| Part number: | HC-4DIN41612-396AFIXXPWA1 |
| Production Capacity | 500,000PCS can be produced every month at HECON |
| HECON Support the Trade Terms | EXW / FOB Shenzhen / DAP etc. |
| HECON Support Payment methods | T/T, PayPal, Alibaba Pay, etc. |
| Delivery Time | 3-7 working days for making sample. 15 working days for production. |
| Packaging | PE bag packing or Custom packing |
| Shipping | By sea, By air or by express delivery (DHL/UPS/FEDEX) |
| MOQ | We support the MOQ from 50pcs to 100pcs. |
| Certification | UL, CQC, CE, ROHS, REACH, and SGS Testing reports. |
IDC Type 96Pin DIN41612 Product Description:
The DIN41612 is a connector that simplifies the assembly process of electronic products and also simplifies the batch circuit transmission process. DIN41612 connectors have a variety of different specifications of male, female, right angle, IDC type, straight, spacing of 2.54mm two rows of 32-pin, 20-pin. Spacing 2.54mm and 5.08mm three rows of 30-pin, 32-pin, 48-pin, 64-pin, 96-pin, 120-pin. Four rows of 128 pins with 2.54mm spacing. Spacing 2.54mm five rows of 160 pins and other different welding crimping styles to meet the requirements of major complex integrated circuits.
DIN41612 connector use benefits:
1. Improve the production process. The connector simplifies the assembly process of electronic products and also simplifies the mass production process.
2. Easy maintenance. If an electronic component fails, the failed component can be quickly replaced when the connector is installed.
3. easy to upgrade. As technology advances, components can be updated when connectors are installed, replacing old ones with new, more complete components.
4. improve the flexibility of the design. The use of connectors allows for greater flexibility when designing and integrating new products, as well as when composing systems with component parts.
Product Feature:

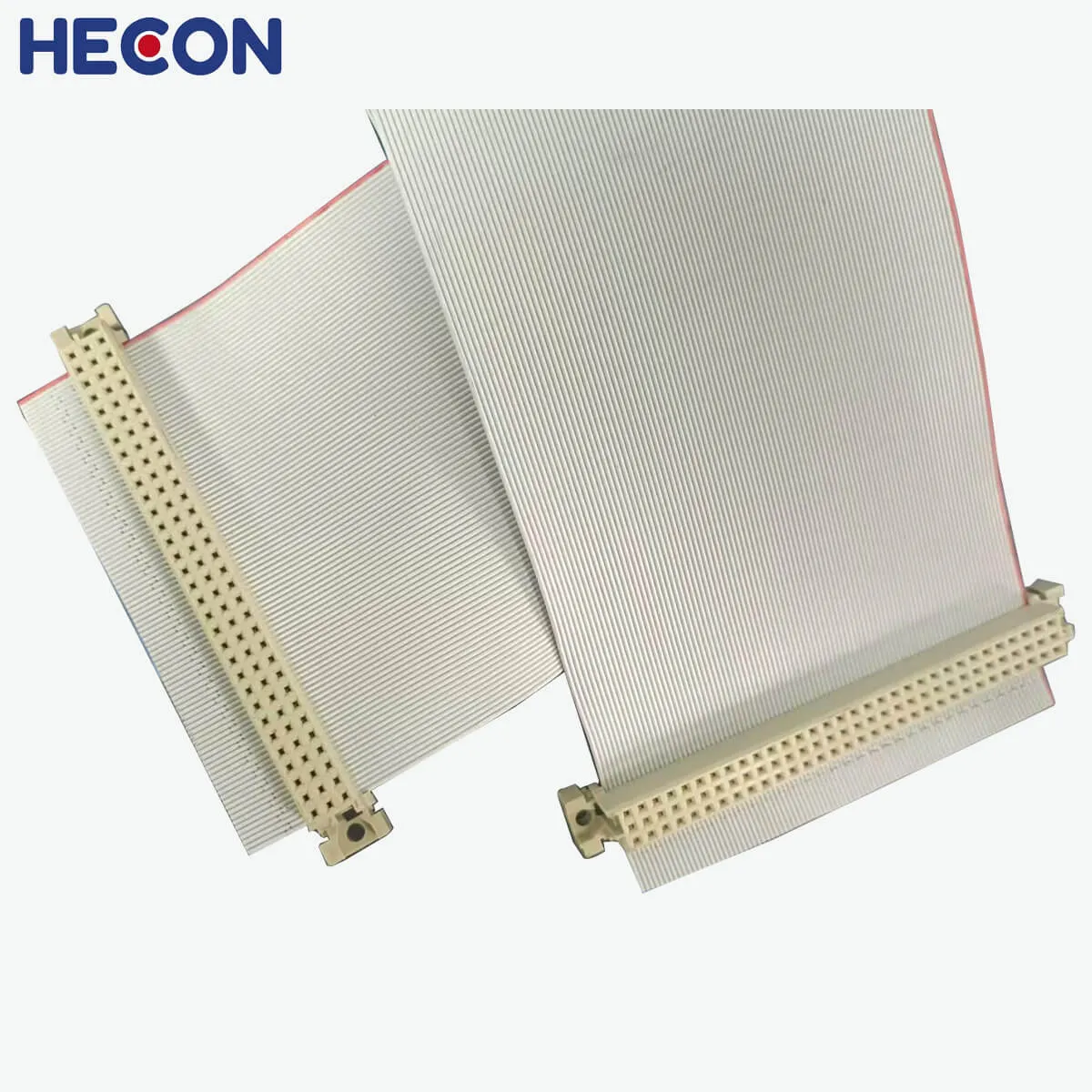

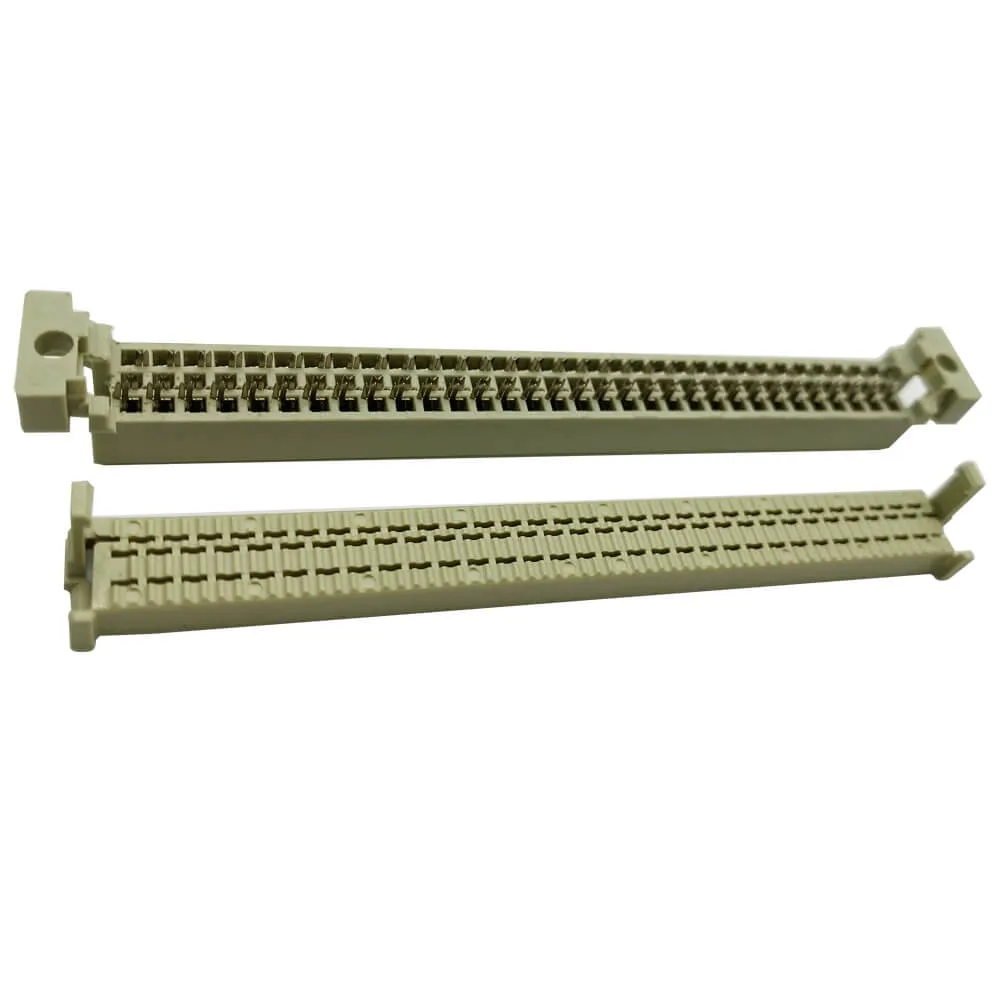

The DIN41612 IDC Type 96Pin can be crimped into 3M flat cables. The two-piece structure can withstand approximately 250 CYC insertion and extraction force tests. Salt spray tests: After maintaining the temperature at 35°C for 48 hours, the ungold-plated terminals show no obvious corrosion or deformation, and all performances meet the requirements.
FAQ
- Q1: What is your MOQ?
MOQ is 100pcs. - Q2: Can we get free samples?
Yes, We can provide free 3-10pcs samples but freight collect and customized part you need pay samples cost. - Q3: What is samples lead time?
Standard samples delivery date about 3-5 days and customized samples need about 7 -10 working day. - Q4: What is your mass production delivery date?
2-3 weeks once confirm your order. - Q5: What is your advantages do you have?
A. HECON is a professional manufacturer in custom wire harness cable assemblies and PCB connectors well customized parts design and solution with manyyears experience.
B. Stability connectors and cable with high value.
C. Support low MOQ100pcs and Fasting Shipping .
D. All Products comply with ROHS and Reach Requirements.
E. One-Stop-Source in China to save your cost and time.
F. We HECON Products quality guarantee over 24 months. - Q6: Why choose HECON company?
A. We HECON respect the customer terms to protect customer privacy projects.
B. High Quality with attractive price .
C. Fast Lead time, RTS delivery date 3-7days, Customized delivery date 10-15days.
D. Happy deal & Honesty to customer and partner.
E. Professional sales and reply your inquiries within 8 hours.
F. HECON‘s Products and service are sold to more than 70 countries with good reputation. - Q7: How about your after -sales -service?
A. Products can guaranteed 24 months once goods left our factory.
B. We HECON deal with your complains within 8 hours.
C. Honesty to customer and partner. - Q8: What is your HECON PCB Connector can be provide?
Terminal Blocks, Board to Board, Pin Header , Female Header, Box Header, SQ PIN , IDC, Dip, Machined (Round)Pin, DIN41612, Micro Match, D-sub, Type-C, RJ11, IC sockets. POGO PIN, POGO PIN Connectors, M Series Circular Connectors. - Q9: What is your advantage cables can be provide?
Custom harness cable from 0.5mm to 6.35mm Housing.
Molding Cables, Type C Cable, DB Cable, ECG Cable, Network Cable, USB Cable, FFC/ IDC Flat Cable with low MOQ and fast lead time. - Q10: What kind of payment does your company support?
We have diversification of payment methods, TT, PayPal, Net days.
| Basic product attributes | |||
| Part Number: | HC-4DIN41612-396AFIS0PWA1 | Pitch: | 2.54mm |
| Specification: | 2.54mm Euro DIN41612 Female IDC Type 3rows 96P(3x32P) Connectors | Type: | IDC Type |
| Gender: | Female | Pins: | 3x32Pin 96Pin |
| Application: | PCB | Row: | 3 row |
| Material | |||
| Raw Materials | Specific material electrical parameters | ||
| Raw Material: | PBT-UL94V-0 | Rated Current: | 2.0AMP |
| Contact Material: | Phosphor Bronze | Contact Resistance: | 20mΩ Maxs |
| Other Properties | Withstand Voltage: | 500V AC/DC | |
| Sample: | Support samples to testing then mass production | Insulation resistance: | 1000MΩ Mine |
| Package: | PE Bag | Operating temperature: | -55°c to 125°c |
| Technical Drawings: | Support | Contact Plating: | Au Over Nickel |
| Lead Time: | 2-3 weeks | Max.Processing Temp: | 180 ℃ ± 30 ℃ 60 seconds |
Producer of Wire Harness Cables and PCB Connectors
Dongguan HECON Electronics Co., Ltd is a high-tech modern company that specializes in the research and development production and sales of a series of products such as precision connectors, flat cables, cable combinations also wire harness cables, and providing leading connector products, and innovative customized service solutions. The Series of connectors products is complete and covers the board-to-board connectors such as Pin header, Female Header, DIN41612, Machined pin header, and wire-to-board connectors series such as Box Header, Ejector Header, IDC, DIP, Micro Match, Picoflex, and Wafer/Housing/Terminal/Pogo pin /Pogo Pin Connectors
