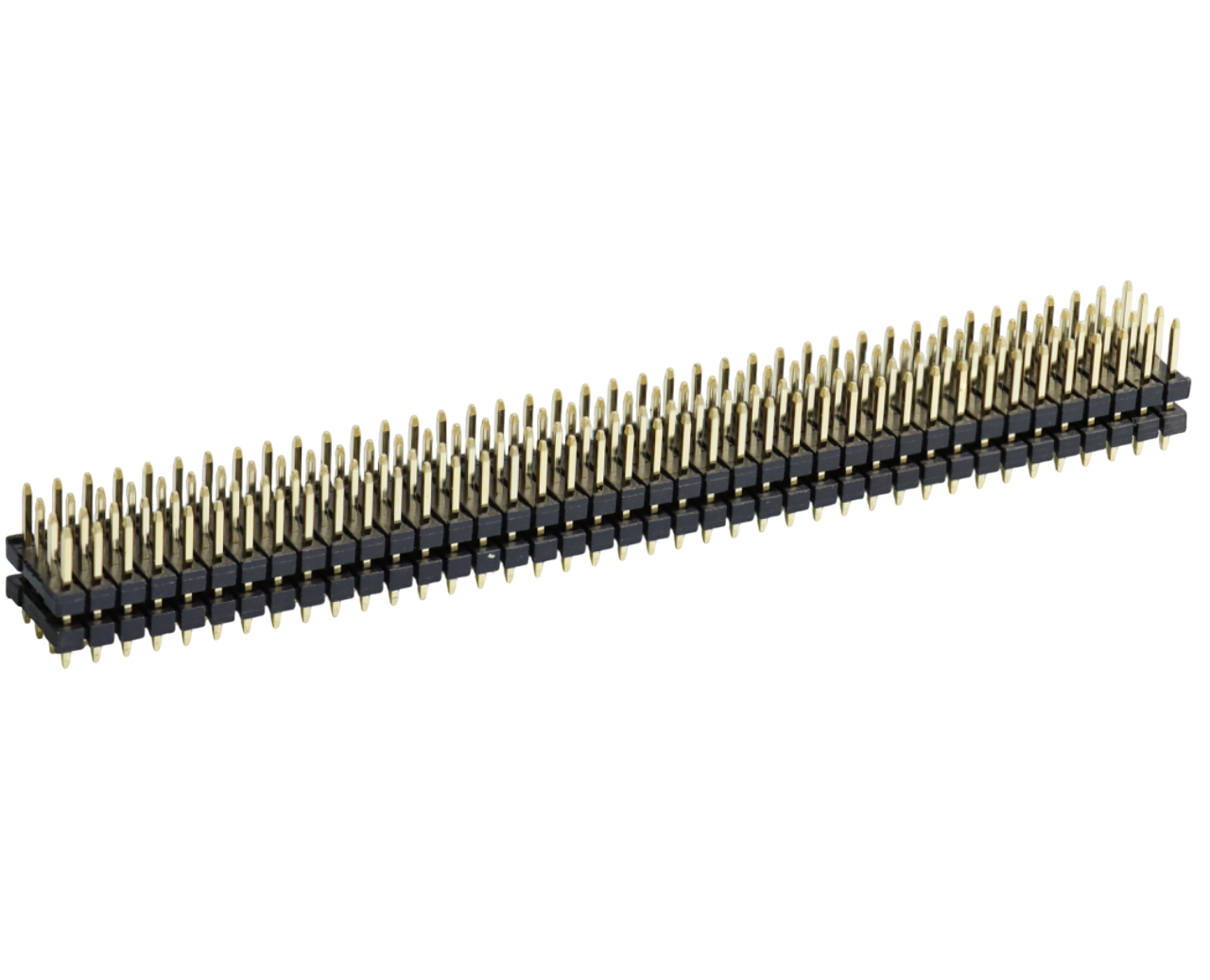

2.0mm Pitch Pin Header H2.0 Dual row Straight Type
| Product name: | 2.0mm Pitch Pin Header H2.0 Dual row Straight Type |
| Part number: | HC-PH520-22XXXNXXSXXXX02 |
| Production Capacity | 500,000PCS can be produced every month at HECON |
| HECON Support the Trade Terms | EXW / FOB Shenzhen / DAP etc. |
| HECON Support Payment methods | T/T, PayPal, Alibaba Pay, etc. |
| Delivery Time | 3-7 working days for making sample. 15 working days for production. |
| Packaging | PE bag packing or Custom packing |
| Shipping | By sea, By air or by express delivery (DHL/UPS/FEDEX) |
| MOQ | We support the MOQ from 50pcs to 100pcs. |
| Certification | REACH, and SGS Testing reports. |
Product Introduction:
The 2.0mm Pitch Pin Header H2.0 Dual Row Straight Type is a versatile connector widely used in electronic communication and electrical equipment. Designed for PCB board connections, it facilitates efficient data and power signal transmission. Its dual-row configuration enhances connectivity options, making it suitable for various applications, including board-to-board and board-to-wire connections. The product is crafted with high-quality materials, ensuring reliability and reusability, which contributes to maintenance efficiency and cost-effectiveness. This pin header is ideal for engineers and manufacturers looking for robust and adaptable connectivity solutions.
Product Features:
The 2.0mm Pitch Pin Header features a dual-row straight type design, offering a pitch of 2.0mm. It is available in configurations ranging from 2x02P to 2x40Pin, catering to diverse connectivity needs. The connector is made from durable materials, including PBT-UL94V-0 or PA6T LCP for the rubber core and brass for the terminals, ensuring longevity and performance. It supports a rated current of 1.5AMP and withstands voltage up to 500V AC/DC. The contact resistance is a maximum of 20mΩ, and the insulation resistance is a minimum of 1000mΩ, providing reliable electrical performance. The connector is designed to operate in temperatures ranging from -40°C to 105°C, making it suitable for various environmental conditions.
Product Value:
This pin header connector provides significant value to users by offering reliable and efficient connectivity solutions for electronic devices. Its durable construction ensures long-term performance, reducing maintenance costs and downtime. The connector's versatility in supporting various connection types enhances its applicability across different industries, making it a cost-effective choice for manufacturers. By facilitating fast and effective data and power transmission, it contributes to improved device functionality and user satisfaction.
Pin Header Optional Types:
Pin header connector spacing can be roughly divided into: 0.8mm,1.0mm,1.27mm,2.0mm,2.54mm,3.96mm,5.08mm or customized pitch
The number of rows can be divided into: single row, double row, three rows, four rows and so on.

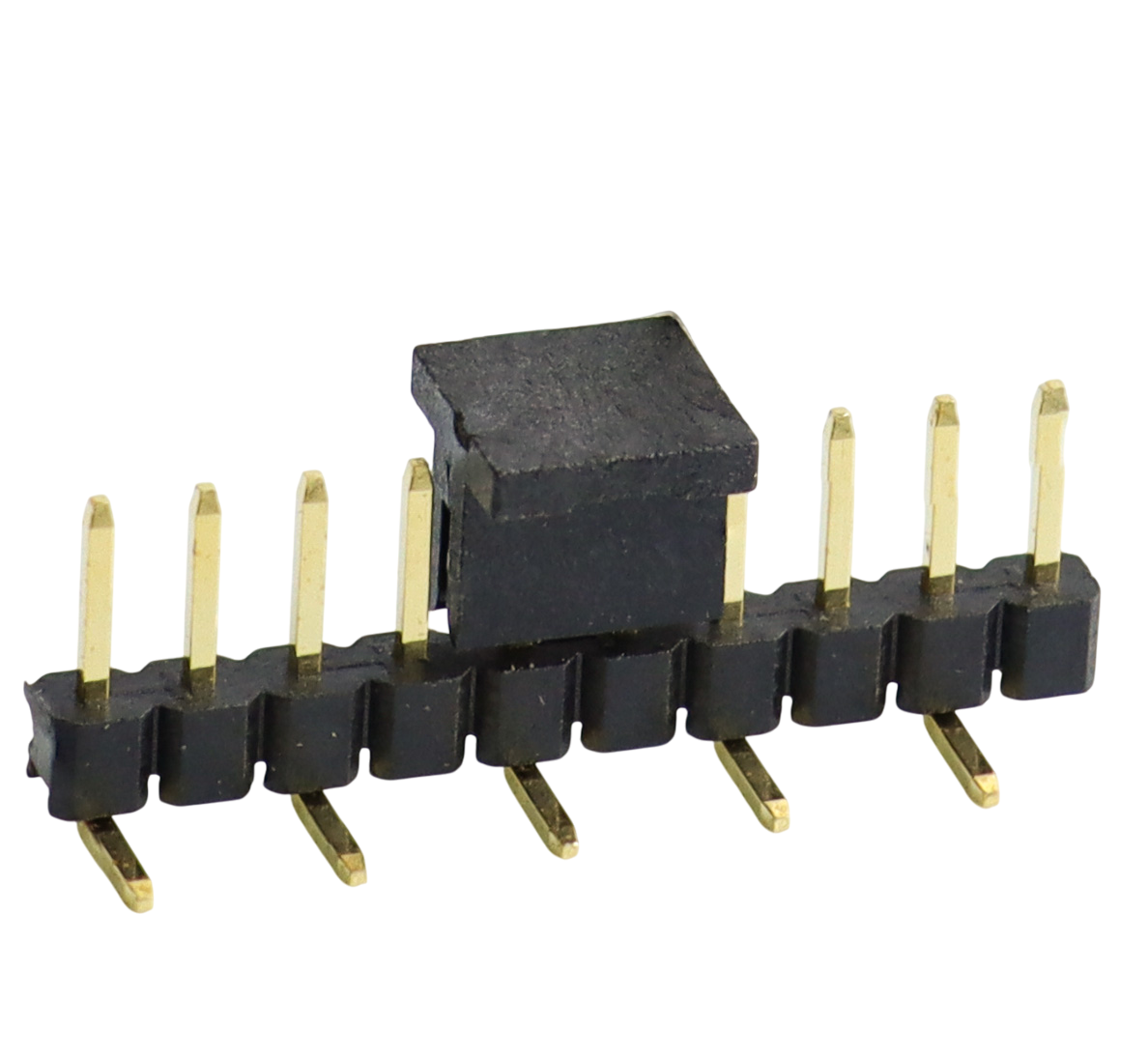

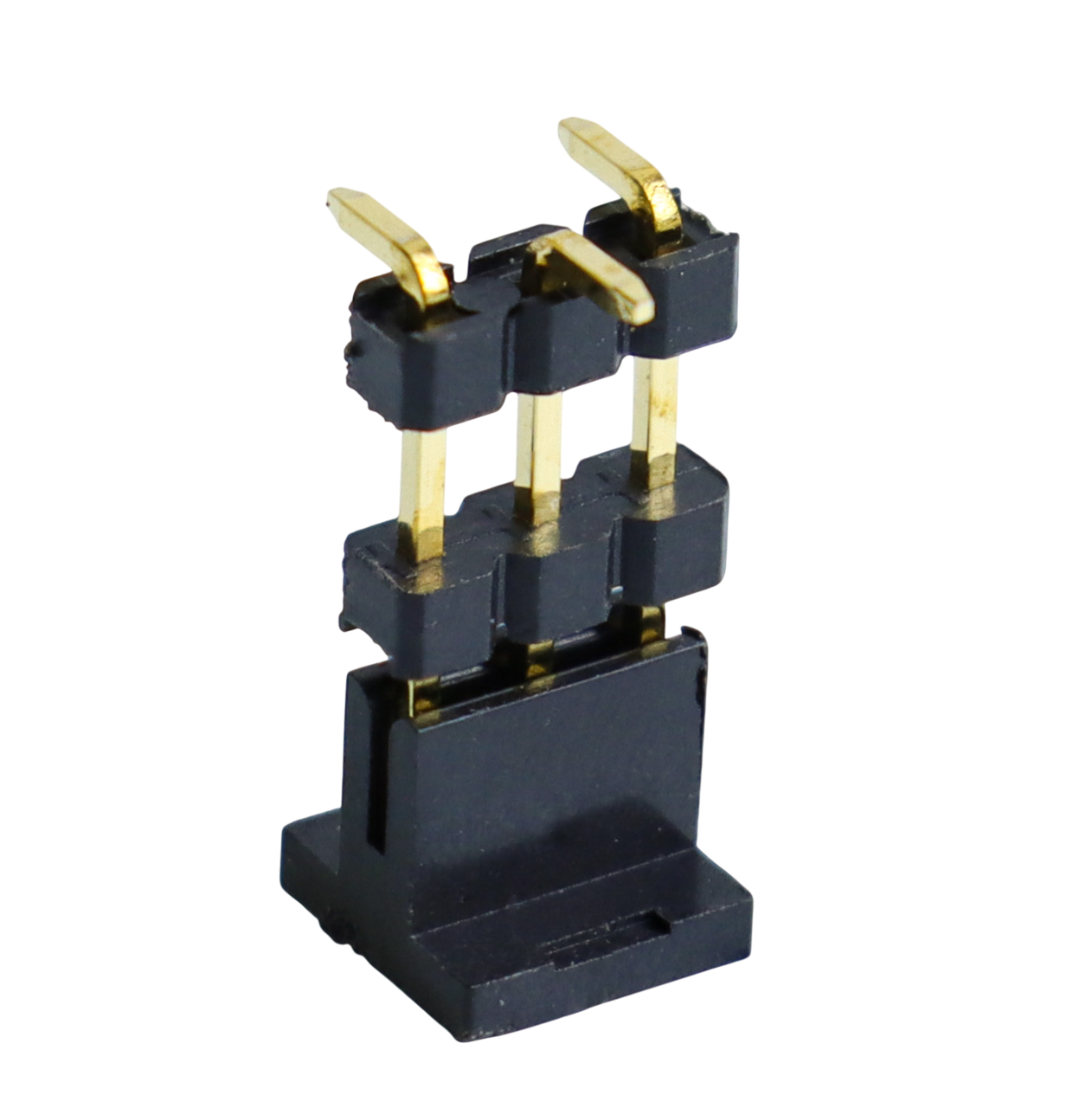

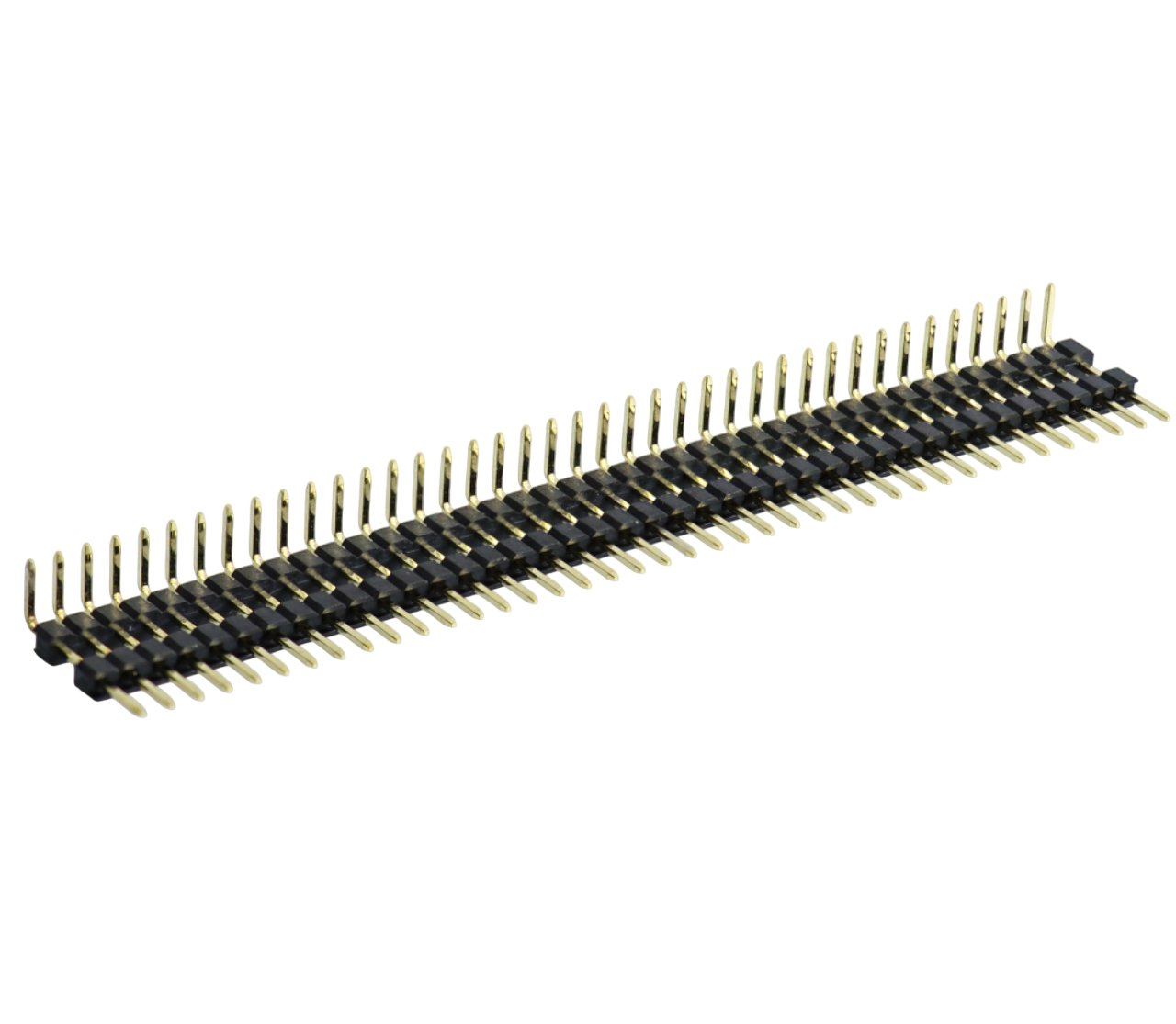

Type can be divided into: straight, right angle , SMT , right angle SMT standing stickers, etc.
Dimensions length, width, plastic height can be customized according to requirements.
| Basic product attributes | |||
| Part Number : | HC-PH520-22XXXNXXSXXXX02 | Pitch: | 2.0mm |
| Specification: | 2.0mm Pitch Pin Header H2.0 Dual row Straight Type | Type: | Straight |
| Gender: | Male | Pins: | 2x02P To 2x40Pin |
| Application: | PCB board Connector | Rows: | 2 Rows |
| Material | |||
| Raw Materials | Specific material electrical parameters | ||
| Rubber core raw materials: | PBT-UL94V-0 or PA6T LCP Black | Rated current: | 1.5AMP |
| Terminal raw materials: | Brass | Contact resistance: | 20mΩ Maxs |
| Other Properties | Withstand voltage: | 500V AC/DC | |
| Sample: | Support Free samples | Insulation resistance: | 1000mΩ Min |
| Packing method: | Tray /Tube /PE Bag/Tape&Reel packaging | Operating temperature: | -40°c to 105°c |

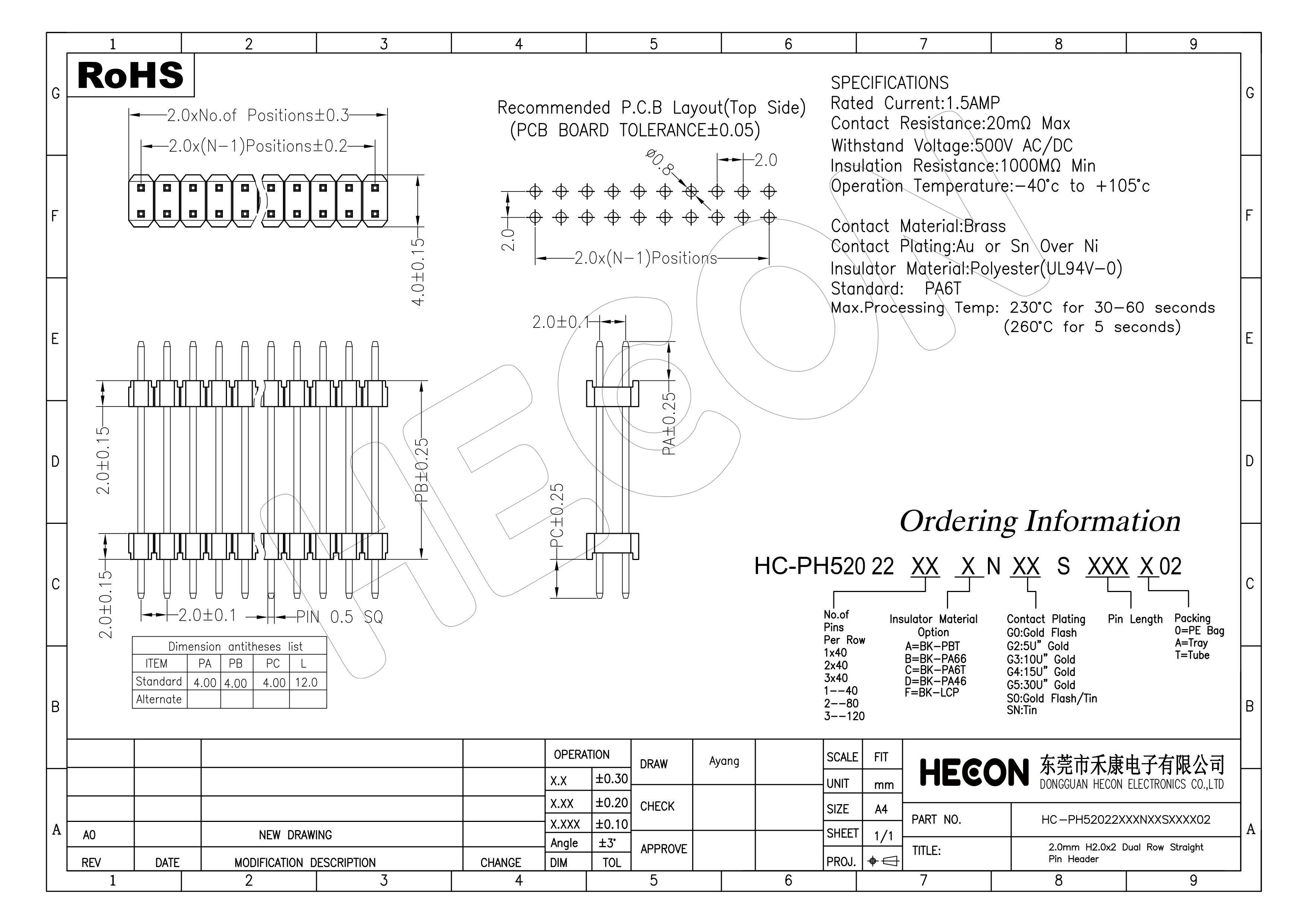

| Engineering Drawings: | custom 2D, 3D | Contact plating: | Au or Sn Over Ni |
| Delivery time: | 2-3 weeks after order confirmation | Maximum processing temperature: | 230 ° c for 30-60 Seconds / 260 ° c for 10 Seconds |
