2.0mm Pitch Pin Header H2.0 Single row Right Angle Type Pin header connector

Part number : HC-PH520-21XXXNXXRXXXX01 2.0mm Pin Header Right Angle 40Pin

2.0mm Pitch Pin Header H2.0 Single row Right Angle Type Pin header connector

Online inquiry

Drawing download

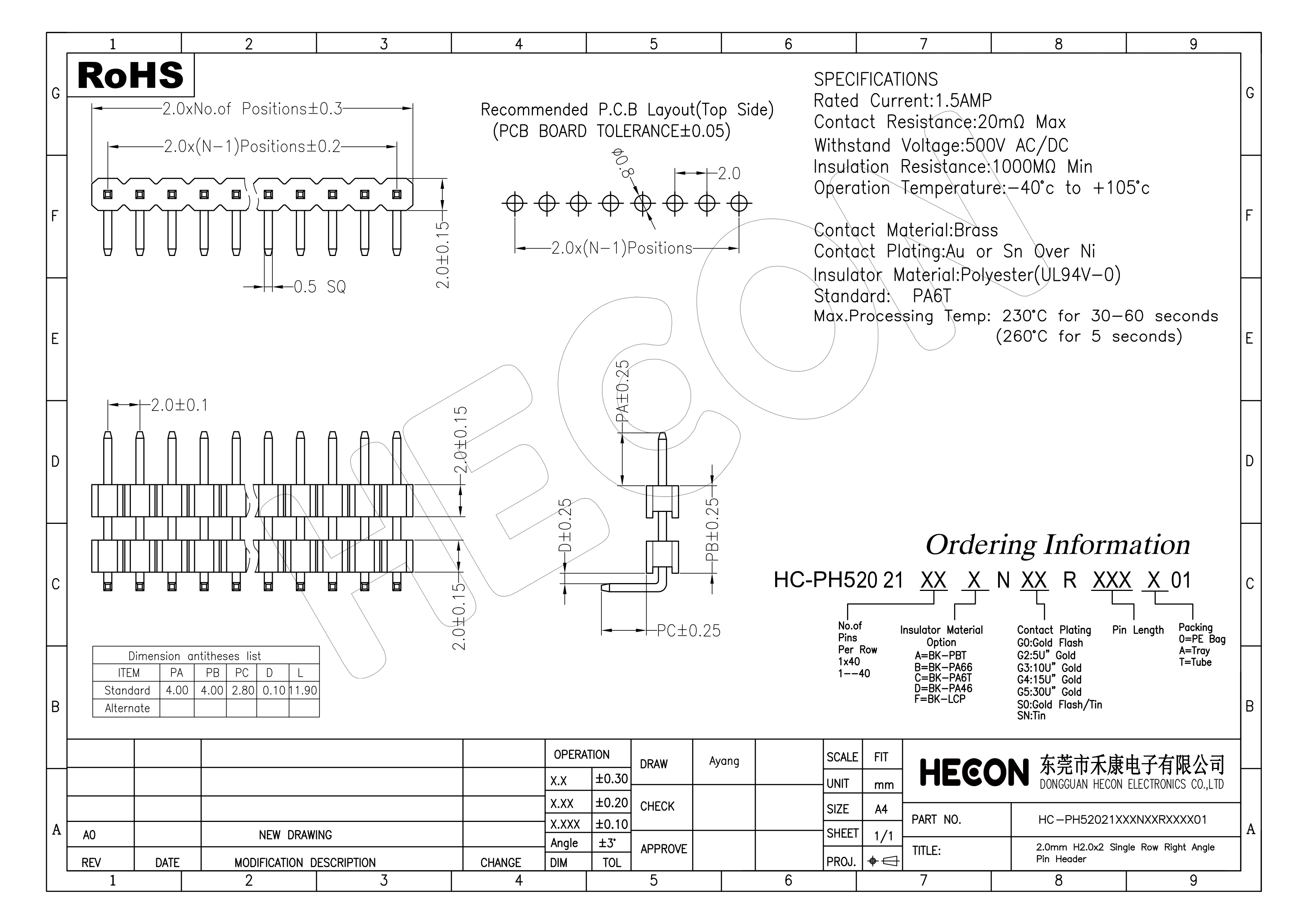

Product Description Engineering Drawings Specifications 3D Presentation

Pin header connector is widely used in electronic communication, electronic and electrical equipment, connecting circuit board functions, etc., which allows fast and effective transmission of data and power signals, has good reliability and reusability and can provide circuit board maintenance efficiency and cost-effectiveness. The pin header connector is usually used in conjunction with the female header, or with the electronic harness terminal, which can form the effect of board-to-board connection and board-to-wire connection.

Pin header connector spacing can be roughly divided into: 0.8mm,1.0mm,1.27mm,2.0mm,2.54mm,3.96mm,5.08mm or customized pitch

The number of rows can be divided into: single row, double row, three rows, four rows and so on.

Type can be divided into: straight, right angle , SMT , right angle SMT standing stickers, etc.

Dimensions length, width, plastic height can be customized according to requirements.

Basic product attributes
Part Number :	HC-PH520-21XXXNXXRXXXX01	Pitch:	2.0mm
Specification:	2.0mm Pitch Pin Header H2.0 Single row Right Angle Type Pin header connector	Type:	90° Right Angle
Gender:	Male	Pins:	1x02P To 1x40Pin
Application:	PCB board Connector	Rows:	1 Rows
Material
Raw Materials		Specific material electrical parameters
Rubber core raw materials:	PBT-UL94V-0 or PA6T LCP Black	Rated current:	1.5AMP
Terminal raw materials:	Brass	Contact resistance:	20mΩ Maxs
Other Properties		Withstand voltage:	500V AC/DC
Sample:	Support Free samples	Insulation resistance:	1000mΩ Min
Packing method:	Tray /Tube /PE Bag/Tape&Reel packaging	Operating temperature:	-40°c to 105°c
Engineering Drawings:	custom 2D, 3D	Contact plating:	Au or Sn Over Ni
Delivery time:	2-3 weeks after order confirmation	Maximum processing temperature:	230 ° c for 30-60 Seconds / 260 ° c for 10 Seconds
