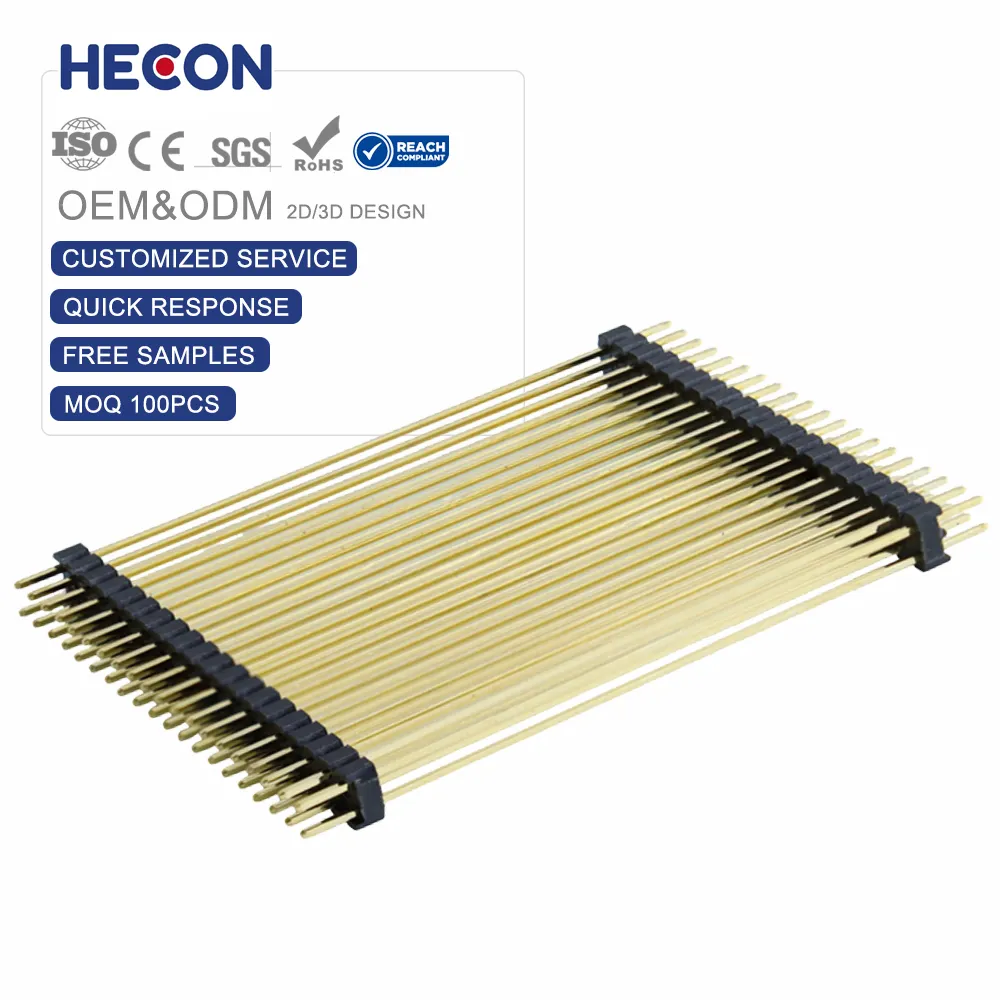

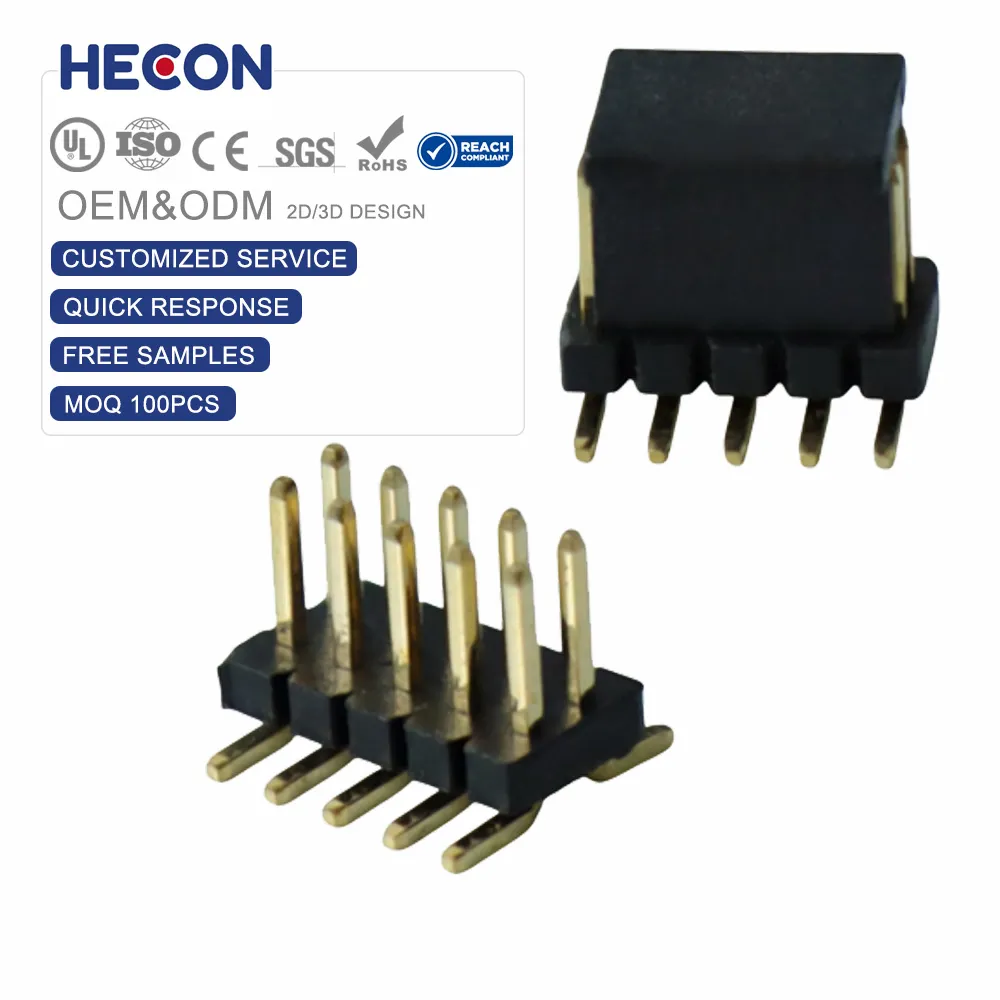

Pin Header Connectors: The Gold Standard in PCB Interconnection


Pin header connectors, fundamental components in electronic design, serve as critical bridges for signal and power transmission across printed circuit boards (PCBs). These versatile connectors—comprising metal pins arranged in rows or grids—enable secure board-to-board, wire-to-board, and module-to-board connections, forming the backbone of modern electronic systems.

1. Key Advantages Driving Industry Adoption
Reliable Electrical Performance: Pin headers ensure stable power delivery and signal integrity between PCBs, LED drivers, and control circuits. Their brass/phosphor bronze contacts, often plated with gold (Au) or tin, minimize resistance (as low as 20mΩ) and withstand up to 500V AC.

Robust Mechanical Stability: Reinforced by thermoplastic housings (PBT, PA6T, or LCP), these connectors achieve UL 94V-0 flammability ratings and endure -40°C to 125°C temperatures. Polarized designs prevent misalignment, while shrouded variants offer IP40 protection.

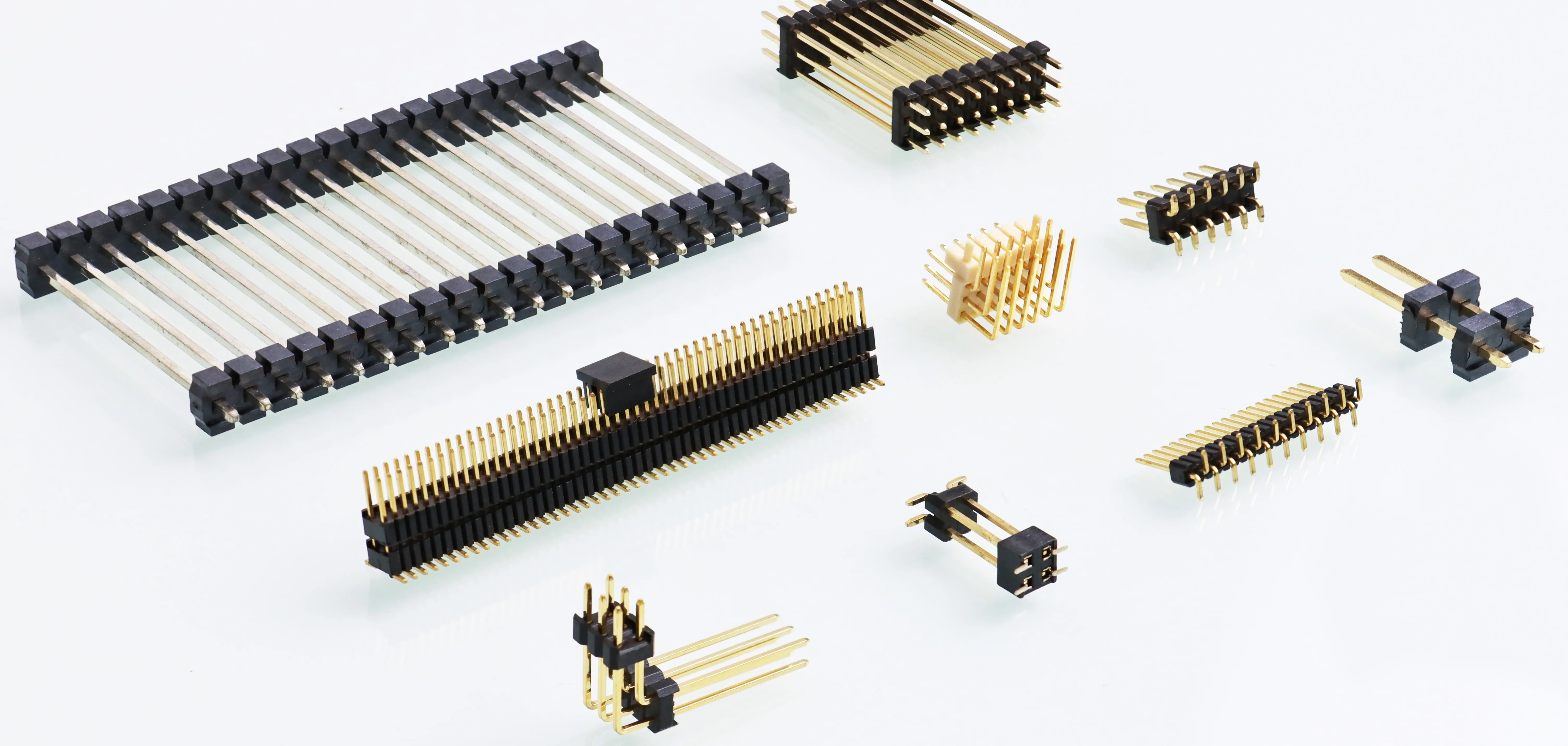

Modular Flexibility: With configurations spanning 0.8mm–5.08mm pitch, 1–140 positions, and orientations (vertical, right-angle, SMT), pin headers adapt to high-density layouts like industrial automation panels and slim consumer electronics.

2. Why Gold Pin Headers Outperform Standard Options
Gold plating (0.8μ"–5μ") elevates pin headers for mission-critical applications:

Enhanced Conductivity: Gold’s low contact resistance ensures uninterrupted data/power transfer in high-frequency systems like servers and RF equipment.

Corrosion & Wear Resistance: Withstand 500+ mating cycles—ideal for frequently connected devices (e.g., test instruments, modular robotics).

Oxidation Prevention: Eliminate signal loss in humid or corrosive settings (e.g., automotive, outdoor lighting).

3. Dominant Applications Across Industries
LED Lighting Systems: Simplify connections between LED arrays, drivers, and controllers in commercial signage, automotive lighting, and smart fixtures.

Automotive Electronics: Gold-plated headers in ECUs and sensors endure vibration/temperature swings while maintaining signal fidelity.

Industrial Automation: High-current variants (3.0A+) link PLCs, motor controllers, and I/O modules in manufacturing lines.

Consumer Tech: Miniature 0.8mm pitch headers enable compact designs in wearables and IoT devices.

4. Engineering Selection Guide
Optimize pin header choice using these parameters:

Pitch & Rows: 2.54mm single-row for breadboards; 0.8mm dual-row for space-constrained PCB.

Mounting Style: SMT for automated assembly; right-angle (90°) for edge-connected daughterboards.

Plating: Gold for high-reliability applications; tin for cost-sensitive projects.

HECON FAQs:

• Q1: What is your MOQ?
  MOQ is 100pcs.
• Q2: Can we get free samples?
  Yes, We can provide free 3-10pcs samples but freight collect and customized part you need pay samples cost.
• Q3: What is samples lead time?
  Standard samples delivery date about 3-5 days and customized samples need about 7 -10 working day.
• Q4: What is your mass production delivery date?
  2-3 weeks once confirm your order.
• Q5: What is your advantages do you have?
  A. HECON is a professional manufacturer in custom wire harness cable assemblies and PCB connectors well customized parts design and solution with manyyears experience.
  B. Stability connectors and cable with high value.
  C. Support low MOQ100pcs and Fasting Shipping .
  D. All Products comply with ROHS and Reach Requirements.
  E. One-Stop-Source in China to save your cost and time.
  F. We HECON Products quality guarantee over 24 months.
• Q6: Why choose HECON company?
  A. We HECON respect the customer terms to protect customer privacy projects.
  B. High Quality with attractive price .
  C. Fast Lead time, RTS delivery date 3-7days, Customized delivery date 10-15days.
  D. Happy deal & Honesty to customer and partner.
  E. Professional sales and reply your inquiries within 8 hours.
  F. HECON‘s Products and service are sold to more than 70 countries with good reputation.
• Q7: How about your after -sales -service?
  A. Products can guaranteed 24 months once goods left our factory.
  B. We HECON deal with your complains within 8 hours.
  C. Honesty to customer and partner.
• Q8: What is your HECON PCB Connector can be provide?
  Terminal Blocks, Board to Board, Pin Header , Female Header, Box Header, SQ PIN , IDC, Dip, Machined (Round)Pin, DIN41612, Micro Match, D-sub, Type-C, RJ11, IC sockets.  POGO PIN, POGO PIN Connectors, M Series Circular Connectors.
• Q9: What is your advantage cables can be provide?
  Custom harness cable from 0.5mm to 6.35mm Housing.
  Molding Cables, Type C Cable, DB Cable, ECG Cable, Network Cable, USB Cable, FFC/ IDC Flat Cable with low MOQ and fast lead time.
• Q10: What kind of payment does your company support?
  We have diversification of payment methods, TT, PayPal, Net days.
