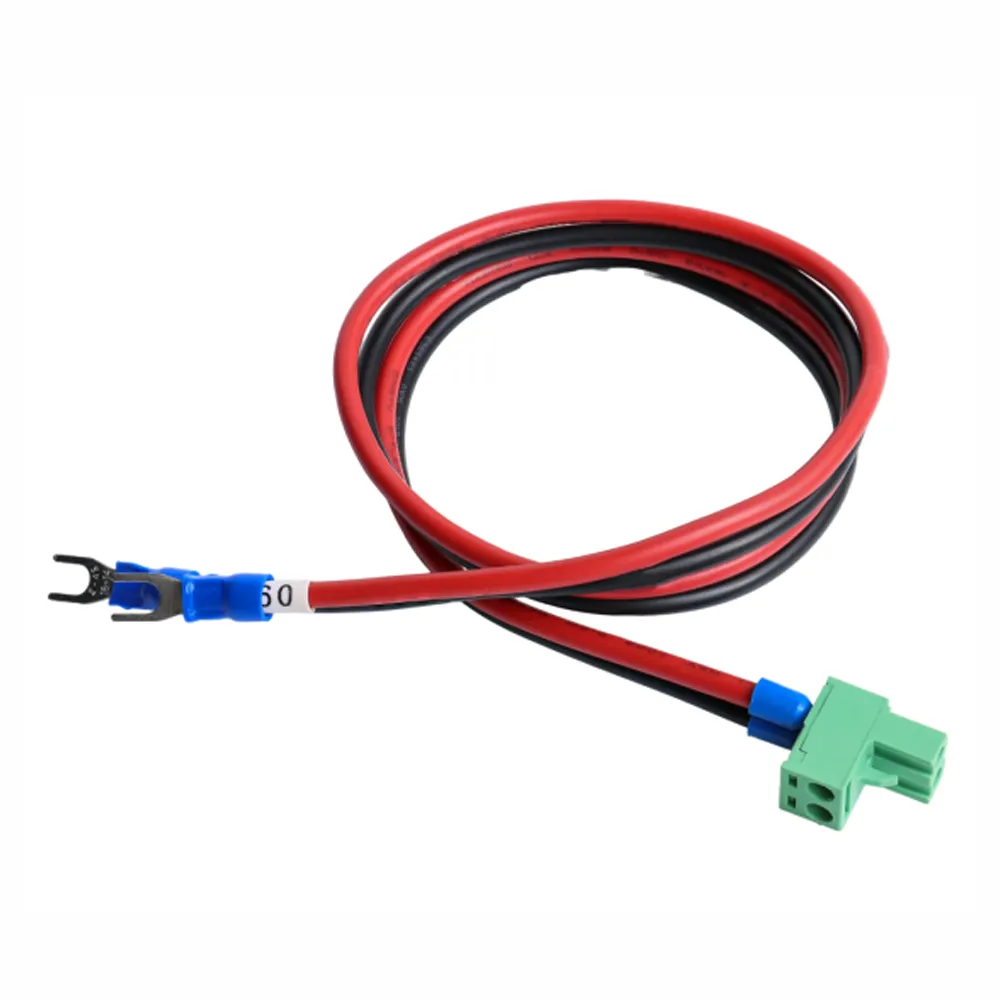

Terminal block to Y type terminal 2P wire harness cable assembly
| Product name: | Terminal block to Y type terminal 2P wire harness cable assembly |
| Part number: | HC-WH-2PXXXXXXX-01 |
| Production Capacity | 500,000PCS can be produced every month at HECON |
| HECON Support the Trade Terms | EXW / FOB Shenzhen / DAP etc. |
| HECON Support Payment methods | T/T, PayPal, Alibaba Pay, etc. |
| Delivery Time | 3-7 working days for making sample. 15 working days for production. |
| Packaging | PE bag packing or Custom packing |
| Shipping | By sea, By air or by express delivery (DHL/UPS/FEDEX) |
| MOQ | We support the MOQ from 50pcs to 100pcs. |
| Certification | UL, CQC, CE, ROHS, REACH, and SGS Testing reports. |
Product Description:
Electronic connection lines are mainly used to carry signals and power connections between equipment. The wiring harness is a wiring component that connects various electrical equipment or automobiles in the circuit. It is composed of wiring terminals, rubber shells or connectors, wires, insulating sheaths and insulating wrapping materials.
What is the pre-insulation design of Y-type terminal blocks?
The pre-insulation design of Y-type terminal blocks refers to the installation of insulating sheaths during the manufacturing process of the terminals. This kind of insulating sheath is generally made of insulating materials such as polypropylene (PA66) and PVC, and is wrapped around the outside of the metal conductive part.
Its functions are mainly reflected in:
Enhance safety: It can prevent operators from accidentally touching live metal parts, reducing the risk of electric shock. At the same time, avoid short-circuit faults caused by accidental contact between wires or between wires and other metal components during wiring.
Reduce additional operations: No need to wrap insulating tape or other insulating materials at the wiring site, simplifying the wiring process and saving time and material costs.
Protecting metal components: It can to a certain extent isolate the external environment, prevent metal parts from being eroded by moisture, dust, chemical substances, etc., and enhance the service life and stability of the terminal.
The Y-type terminal, by connecting to the terminal block connector, can play a more reliable and stable role in assembling the equipment, ensuring the stable transmission of equipment current, reducing problems such as poor contact and short circuit, and guaranteeing the normal operation of the circuit and equipment.
HECON customized wiring harness specifications:
According to the different use environment of the wire harness, the corresponding wire specifications selected mainly include UL single-core wire, multi-core shielded wire, UL1007,UL1571,UL1061,UL1015 /26AWG/28AWG/30AWG/32AWG, etc. The main insulation materials include PVC, silica gel, PE, Teflon, etc., which usually have high temperature resistance, oil resistance, vibration resistance and friction resistance,
The materials of the rubber shell are mainly PA6,PA66,PBT, etc. According to the actual use, flame retardant or reinforced materials are added to the plastic to achieve the purpose of flame retardant or reinforced. The terminal materials are mainly divided into phosphor bronze and brass, and the coating, gold or tin plating can also be selected according to different needs.
FAQ
- Q1: What is your MOQ?
MOQ is 100pcs. - Q2: Can we get free samples?
Yes, We can provide free 3-10pcs samples but freight collect and customized part you need pay samples cost. - Q3: What is samples lead time?
Standard samples delivery date about 3-5 days and customized samples need about 7 -10 working day. - Q4: What is your mass production delivery date?
2-3 weeks once confirm your order. - Q5: What is your advantages do you have?
A. HECON is a professional manufacturer in custom wire harness cable assemblies and PCB connectors well customized parts design and solution with manyyears experience.
B. Stability connectors and cable with high value.
C. Support low MOQ100pcs and Fasting Shipping .
D. All Products comply with ROHS and Reach Requirements.
E. One-Stop-Source in China to save your cost and time.
F. We HECON Products quality guarantee over 24 months. - Q6: Why choose HECON company?
A. We HECON respect the customer terms to protect customer privacy projects.
B. High Quality with attractive price .
C. Fast Lead time, RTS delivery date 3-7days, Customized delivery date 10-15days.
D. Happy deal & Honesty to customer and partner.
E. Professional sales and reply your inquiries within 8 hours.
F. HECON‘s Products and service are sold to more than 70 countries with good reputation. - Q7: How about your after -sales -service?
A. Products can guaranteed 24 months once goods left our factory.
B. We HECON deal with your complains within 8 hours.
C. Honesty to customer and partner. - Q8: What is your HECON PCB Connector can be provide?
Terminal Blocks, Board to Board, Pin Header , Female Header, Box Header, SQ PIN , IDC, Dip, Machined (Round)Pin, DIN41612, Micro Match, D-sub, Type-C, RJ11, IC sockets. POGO PIN, POGO PIN Connectors, M Series Circular Connectors. - Q9: What is your advantage cables can be provide?
Custom harness cable from 0.5mm to 6.35mm Housing.
Molding Cables, Type C Cable, DB Cable, ECG Cable, Network Cable, USB Cable, FFC/ IDC Flat Cable with low MOQ and fast lead time. - Q10: What kind of payment does your company support?
We have diversification of payment methods, TT, PayPal, Net days.
| Basic product attributes | |||
| Part number: | HC-WH-2PXXXXXXX-01 | Connector: | Original factory or Alternative |
| Specification: | Terminal block to Y type terminal 2P wire harness cable assembly | Insulation material: | PVC, Rubber, Silicone, PE, Teflon |
| Cable length: | Size can be customized according to requirements | Packing method: | Bag packing |
| Pin position: | 02Pin | OEM & ODM Service: | Yes |
| Delivery time | 15-25 days after confirmation of order | Sample: | Support samples |
