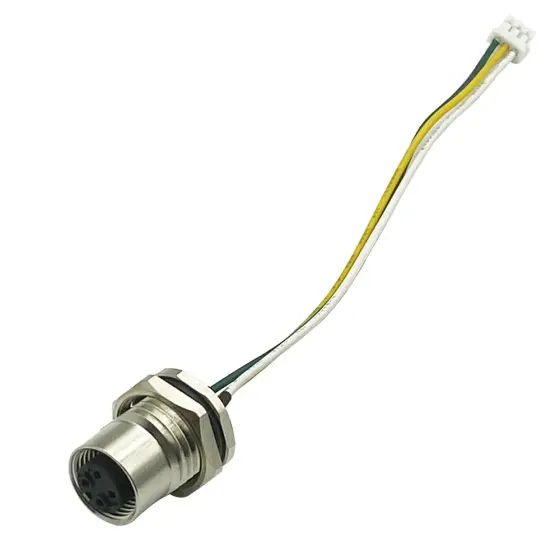

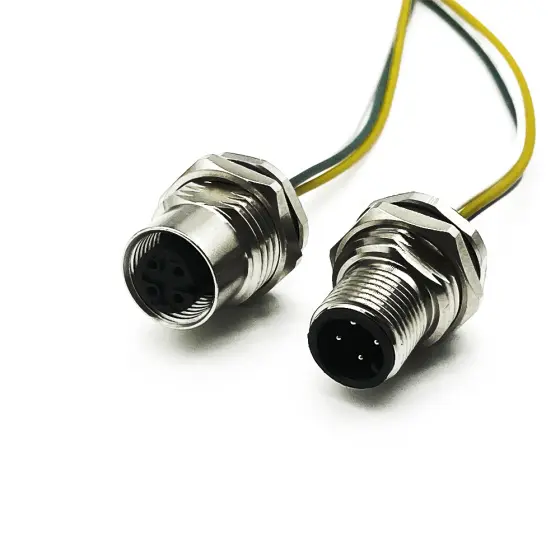

M12 Circular connector to 2.0mm JST Housing Cable Male Female 4Pin Waterproof Cable Assemblies
| Product name: | M12 Circular connector to 2.0mm JST Housing Cable Male Female 4Pin Waterproof Cable Assemblies |
| Part number: | HC-M12-CF-S4-120-01 |
| Production Capacity | 500,000PCS can be produced every month at HECON |
| HECON Support the Trade Terms | EXW / FOB Shenzhen / DAP etc. |
| HECON Support Payment methods | T/T, PayPal, Alibaba Pay, etc. |
| Delivery Time | 3-7 working days for making sample. 15 working days for production. |
| Packaging | PE bag packing or Custom packing |
| Shipping | By sea, By air or by express delivery (DHL/UPS/FEDEX) |
| MOQ | We support the MOQ from 50pcs to 100pcs. |
| Certification | UL, CQC, CE, ROHS, REACH, and SGS Testing reports. |
Product Advantage:
1. Superior Environmental Protection
IP67/IP68 Rating: Resists dust, water, and chemical ingress, ideal for outdoor and industrial environments (e.g., automotive manufacturing, aerospace).
High Temperature Tolerance: Operates in -40°C to +85°C ranges, suitable for aerospace thermal cycles and factory automation.
2. Robust Mechanical Performance
Vibration/Shock Resistance: Maintains stable connections in high-vibration settings (e.g., robotics, heavy machinery).
Durable Mating Cycles: Supports over 100,000 insertion cycles, reducing maintenance costs in industrial automation.
3. Compact & Space-Saving Design
12mm Diameter: Fits dense PCB layouts and confined spaces (e.g., drones, medical wearables).
Lightweight Engineering Plastics: 60% lighter than traditional metal housings while retaining strength.
4. Versatile Connectivity Solutions
Multi-Protocol Support: Compatible with Ethernet, PROFINET, CAN, and DeviceNet, enabling seamless integration into IoT and Industry 4.0 systems.
Coding Variants (A/B/D/X-Type): A-Type for sensors/DC power, B-Type for fieldbus, X-Type for 10G Ethernet, ensuring precise signal integrity.
5. Ease of Installation & Customization
Threaded/Push-Pull Locking: Simplifies assembly in harsh environments (e.g., aerospace wiring harnesses).
Customizable Configurations: Options for 2-12 pins, shielded/non-shielded, and SMT-compatible designs for automated PCB assembly.
6. Compliance & Certification
Global Standards: Meets IEC 61076-2-101, UL, and EN50155.
Flame Retardancy: UL94 V-0 certification ensures safety in high-risk sectors like energy and transportation.
FAQ
- Q1: What is your MOQ?
MOQ is 100pcs. - Q2: Can we get free samples?
Yes, We can provide free 3-10pcs samples but freight collect and customized part you need pay samples cost. - Q3: What is samples lead time?
Standard samples delivery date about 3-5 days and customized samples need about 7 -10 working day. - Q4: What is your mass production delivery date?
2-3 weeks once confirm your order. - Q5: What is your advantages do you have?
A. HECON is a professional manufacturer in custom wire harness cable assemblies and PCB connectors well customized parts design and solution with manyyears experience.
B. Stability connectors and cable with high value.
C. Support low MOQ100pcs and Fasting Shipping .
D. All Products comply with ROHS and Reach Requirements.
E. One-Stop-Source in China to save your cost and time.
F. We HECON Products quality guarantee over 24 months. - Q6: Why choose HECON company?
A. We HECON respect the customer terms to protect customer privacy projects.
B. High Quality with attractive price .
C. Fast Lead time, RTS delivery date 3-7days, Customized delivery date 10-15days.
D. Happy deal & Honesty to customer and partner.
E. Professional sales and reply your inquiries within 8 hours.
F. HECON‘s Products and service are sold to more than 70 countries with good reputation. - Q7: How about your after -sales -service?
A. Products can guaranteed 24 months once goods left our factory.
B. We HECON deal with your complains within 8 hours.
C. Honesty to customer and partner. - Q8: What is your HECON PCB Connector can be provide?
Terminal Blocks, Board to Board, Pin Header , Female Header, Box Header, SQ PIN , IDC, Dip, Machined (Round)Pin, DIN41612, Micro Match, D-sub, Type-C, RJ11, IC sockets. POGO PIN, POGO PIN Connectors, M Series Circular Connectors. - Q9: What is your advantage cables can be provide?
Custom harness cable from 0.5mm to 6.35mm Housing.
Molding Cables, Type C Cable, DB Cable, ECG Cable, Network Cable, USB Cable, FFC/ IDC Flat Cable with low MOQ and fast lead time. - Q10: What kind of payment does your company support?
We have diversification of payment methods, TT, PayPal, Net days.
| Basic product attributes | |||
| Part number : | HC-M12-CF-S4-120-01 | Applicable: | Industrial equipment, computers, aviation, etc. |
| Specification: | M12 Circular connector to 2.0mm JST Housing Cable Male Female 4Pin Waterproof Cable Assemblies | Type: | M12 Cable |
| Cable length: | 120mm or custom | Cable specifications: | UL1007 26AWG |
| Pin position: | 4Pin | Cable color: | Green, yellow, white |
| Packing method: | Bag packing | Sample: | Support samples |
| Services: | OEM & ODM customization accepted | Sample time: | 3 - 7 working days |
| Insulation: | PVC | All materials comply with "ROHS" environmental protection standards | |
Producer of Wire Harness Cables and PCB Connectors
Dongguan HECON Electronics Co., Ltd is a high-tech modern company that specializes in the research and development production and sales of a series of products such as precision connectors, flat cables, cable combinations also wire harness cables, and providing leading connector products, and innovative customized service solutions. The Series of connectors products is complete and covers the board-to-board connectors such as Pin header, Female Header, DIN41612, Machined pin header, and wire-to-board connectors series such as Box Header, Ejector Header, IDC, DIP, Micro Match, Picoflex, and Wafer/Housing/Terminal/Pogo pin /Pogo Pin Connectors
