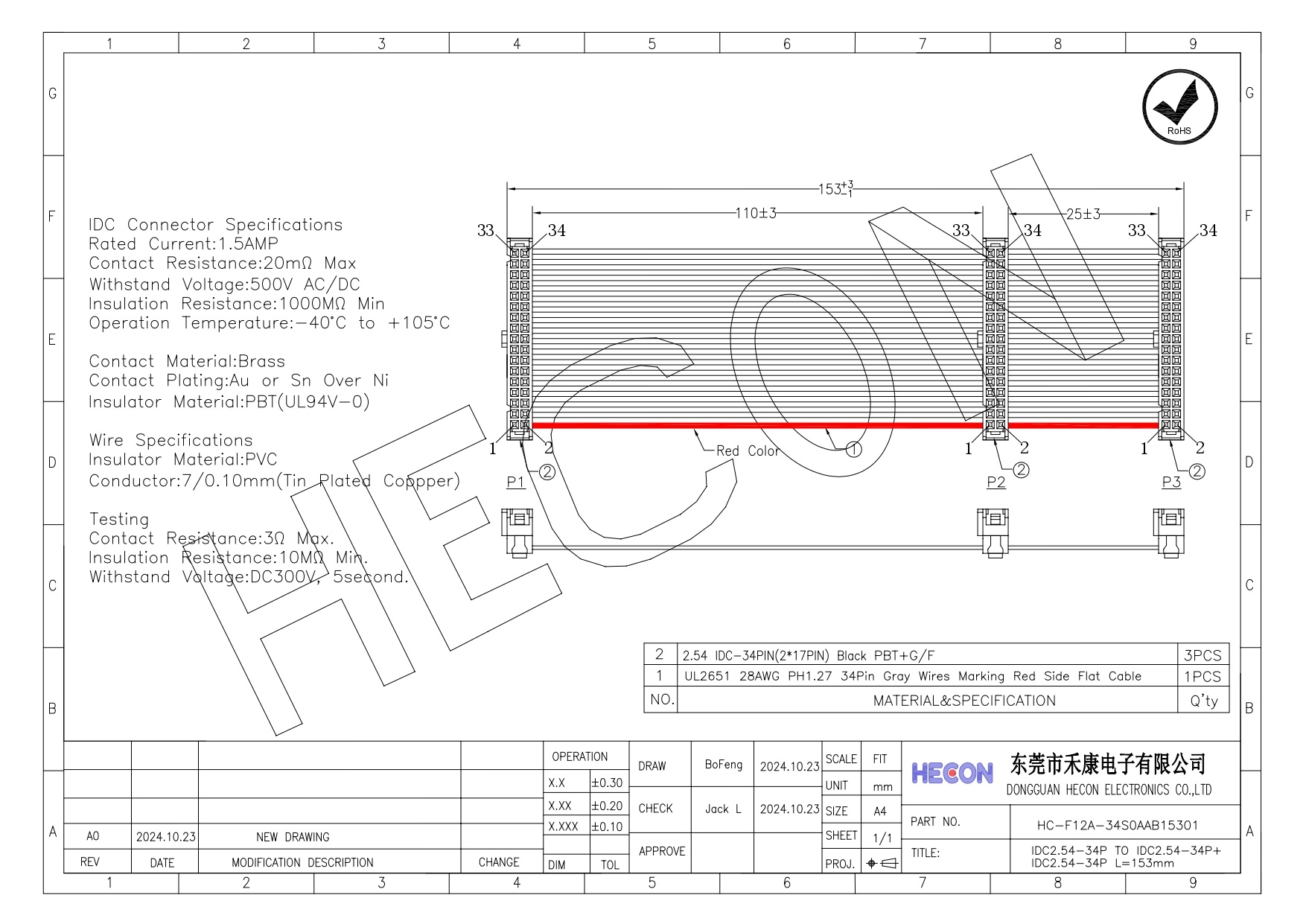

Product Description Engineering Drawings Specifications 3D Presentation
Product name:Custom 2.54mm IDC Flat Cables 34Pin IDC Flat Ribbon Cable Assembly
Part number:HC-F12A34S0AAB15301
Production Capacity500,000PCS can be produced every month at HECON
HECON Support the Trade TermsEXW / FOB Shenzhen / DAP etc.
HECON Support Payment methodsT/T, PayPal, Alibaba Pay, etc.
Delivery Time3-7 working days for making sample. 15 working days for production.
PackagingPE bag packing or Custom packing
ShippingBy sea, By air or by express delivery (DHL/UPS/FEDEX)
MOQWe support the MOQ from 50pcs to 100pcs.
CertificationUL, CQC, CE, ROHS, REACH, and SGS Testing reports.

Product Introduction:

The 2.54mm IDC Flat Cable is a versatile and reliable ribbon cable assembly designed for use in a variety of applications, including large household appliances, computer LED displays, telecommunications, and small electronic equipment. Its compact size and lightweight nature make it ideal for environments where miniaturization and mobility are crucial. The cable is engineered to withstand movement, bending, and twisting without damage, ensuring durability and flexibility in various configurations. With excellent electrical properties, dielectric properties, and heat resistance, this cable assembly offers high assembly reliability and quality, making it a preferred choice for demanding applications.



Product Features:

The 2.54mm IDC Flat Cable features a custom design with a 34-pin configuration and a spacing of 2.54mm. It is equipped with IDC connectors that offer multiple crimping methods, including same direction and reverse configurations, to suit different installation needs. The cable is available in a black color and supports OEM and ODM customization, allowing for tailored solutions. It is constructed with PH1.27mm UL2651 28AWG cable specifications, ensuring robust performance. The connectors are made from brass with options for gold, half-gold, nickel, or tin plating, enhancing contact performance. The cable assembly is compliant with ROHS environmental standards, ensuring safety and sustainability.



Product Specifications:

Part Number: HC-F12A34G0AABXXXXXC. Spacing: 2.54mm. Type: IDC to IDC x3. Cable Length: Customizable. Cable Specifications: PH1.27mm UL2651 28AWG. Pin Position: 34Pin. Cable Color: Black. Packing Method: Bag packing. Sample: Support samples. Sample Period: 3 - 7 working days. Rated Current: 3.0AMP. Insulation Material: PVC. Conductor: 7/0.12mm (tinned copper). Withstand Voltage: 1000V AC/DC. Insulation Resistance: 1000MΩ Min. Working Temperature: -40 ℃ ~ 105 ℃. Terminal Material: Brass. Terminal Plating: Gold Plated/Half Gold Plated Nickel/Tin Plated. Insulation: PBT (UL94V-0).



Product Advantages:

The 2.54mm IDC Flat Cable stands out due to its adaptability and high performance in various applications. Its ability to be customized in terms of length and connector configuration makes it suitable for a wide range of uses. The cable's robust construction ensures excellent electrical and dielectric properties, providing reliable performance even in challenging environments. Its compliance with ROHS standards highlights its commitment to environmental safety. The use of high-quality materials such as tinned copper conductors and brass terminals with various plating options enhances its durability and contact reliability, setting it apart from competitors.



Product Value:

This IDC Flat Cable offers significant value to users by combining flexibility, reliability, and customization. Its ability to be tailored to specific requirements makes it a cost-effective solution for various industries, including electronics and telecommunications. The cable's durability and resistance to environmental factors ensure long-term performance, reducing the need for frequent replacements and maintenance. Its compliance with environmental standards further adds to its value, making it a responsible choice for businesses looking to minimize their ecological footprint. Overall, the 2.54mm IDC Flat Cable provides a high return on investment through its superior performance and adaptability.



FAQs:

Q1. What is the typical application of the 2.54mm IDC Flat Cable?

The cable is used in large household appliances, computer LED displays, telecommunications, and small electronic equipment.

Q2. Can the cable length be customized?

Yes, the cable length can be customized to meet specific requirements.

Q3. What are the available plating options for the terminals?

The terminals can be plated with gold, half-gold, nickel, or tin.

Q4. Is the cable compliant with environmental standards?

Yes, the cable complies with ROHS environmental protection standards.

Q5. What is the working temperature range of the cable?

The cable can operate in temperatures ranging from -40 ℃ to 105 ℃.

Basic product attributes
Part  Number :HC-F12A34S0AAB15301Pitch:2.54mm
Specification:Custom 2.54mm IDC Flat Cables 34Pin IDC Flat Ribbon Cable AssemblyType:IDC Type Three Connector
Cable length:153mm or CustomCable specifications:UL2651 28AWG
Pin position:34Pin or CustomCable color:Gray + Red marks
Packing method:Bag packingSample :Support samples
Services:OEM & ODM customization acceptedSample time:3 - 7 working days
Specific material electrical parameters
IDC Connector Specifications:Wire specifications
Rated current:1.5AMPInsulator material:PVC
Contact resistance:20mΩ MaxConductor:7/0.1mm (Tin Plated Copper)
withstand voltage:500V AC/DCIDC gray cable test
Insulation resistance:1000MΩ MinContact resistance:3Ω Max.
Operation temperature:-40 ℃ ~ 105 ℃Insulation resistance:10MΩ Min.
Contact Material:BrassWithstand voltage:DC300V, 5 seconds
Contact Plating:Gold Plated/TinInsulator Material:PBT (UL94V-0)
