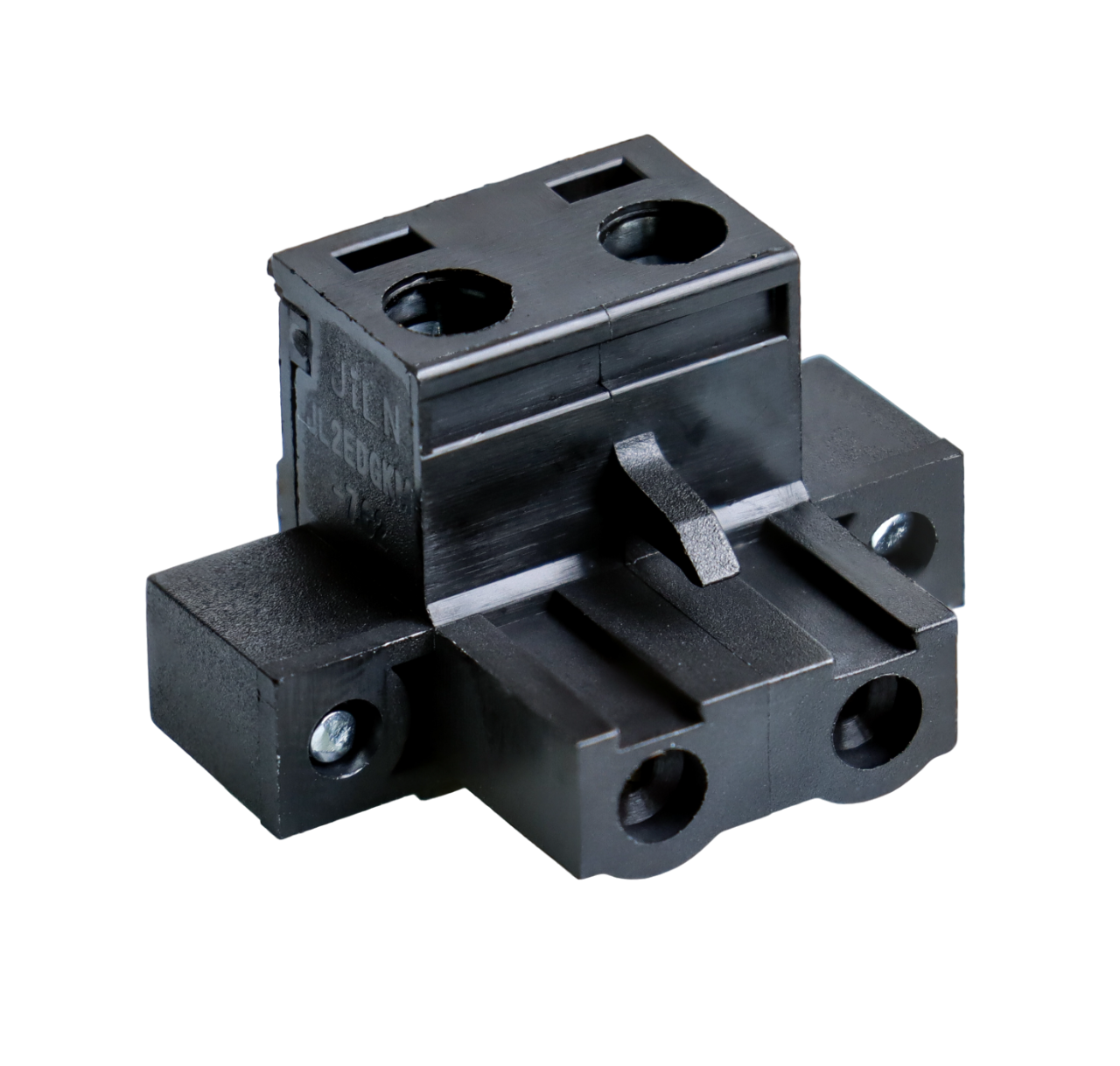

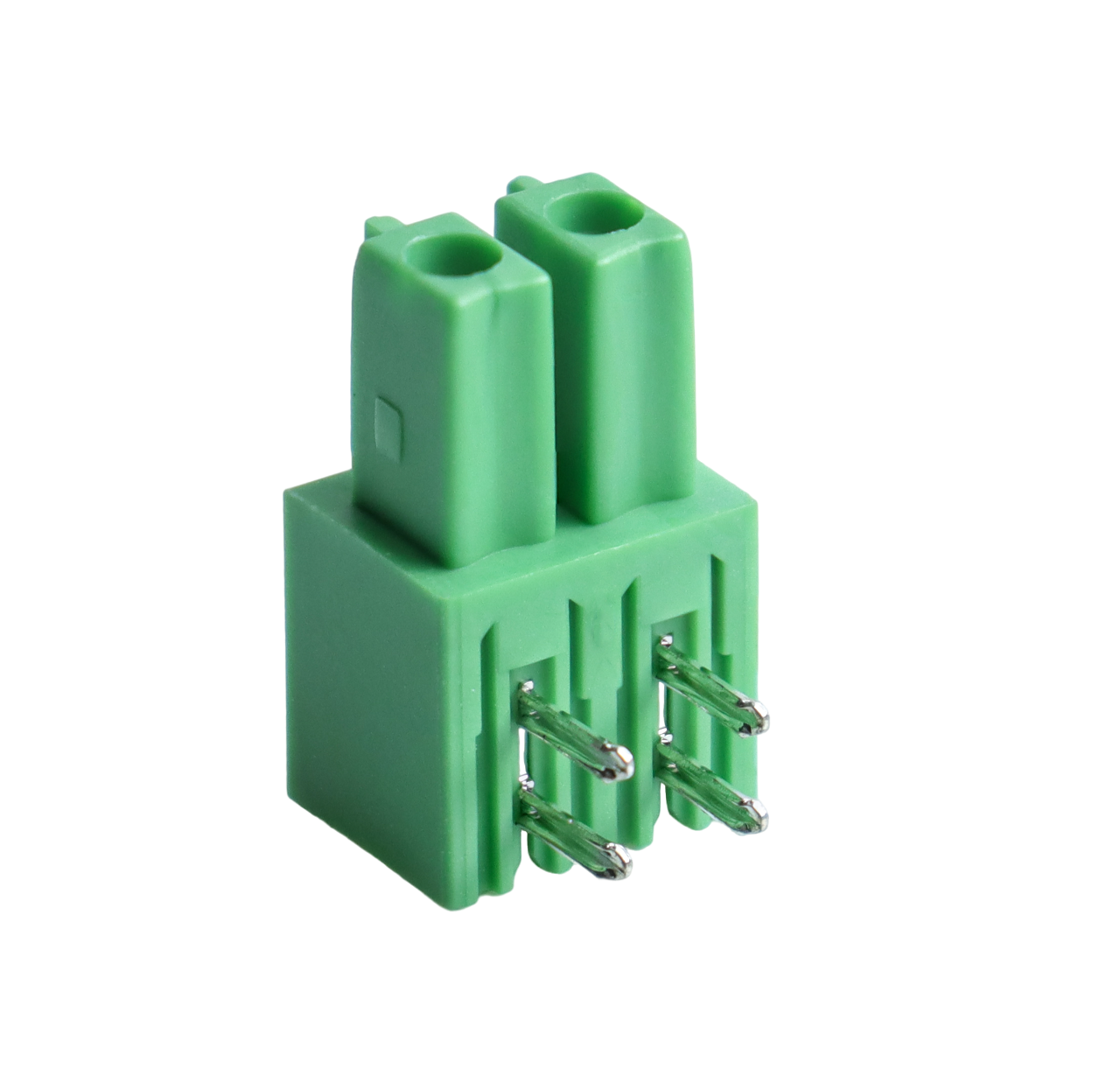

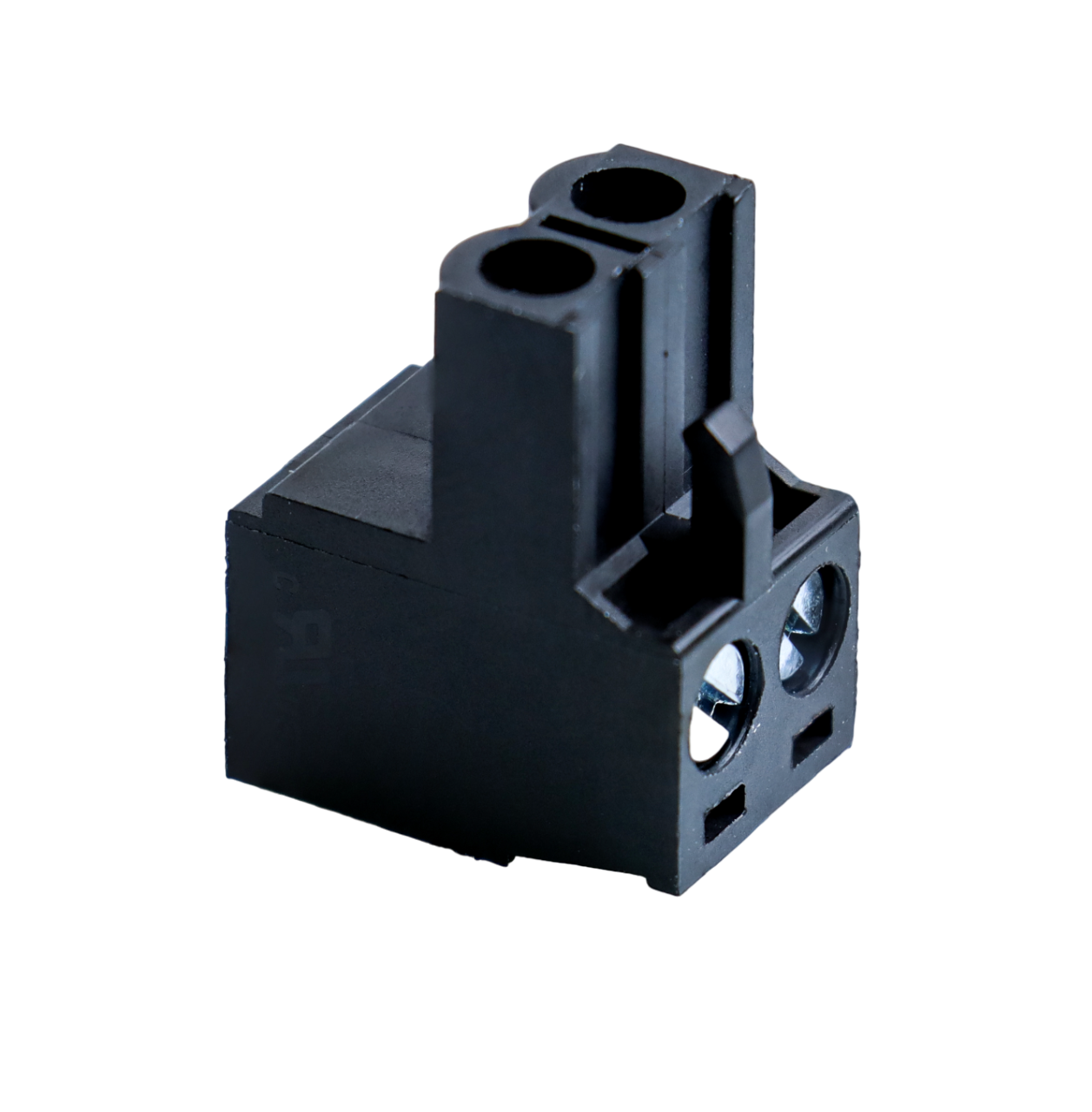

5.08mm Pitch Female 2P Pluggable Type Terminal Blocks Connector
5.08mm pluggable terminal blocks connectors, all specifications of HECON terminal block connectors comply with IEC 60947-7-1, UL 1059 & DIN 46277 industry standards.
The benefits of our pluggable terminal blocks connectors are:
Flexibility and convenience:
Fast installation and removal, solid connection, stable connection even in vibration or shock environment, high-quality materials: high temperature resistance, corrosion resistance, ensure long-term reliable operation, and if you buy any connector at HECON, we will have a three-year shelf life.
Diversified options:
Our terminal block connectors have different pin counts, pitch and current capacity, and support PCB mounting, rail mounting, etc., to suit different application scenarios.
| Basic product attributes | |||
| Part Number: | JL500B-XXXXXXX1 | Pins: | 02P (02P to 24P) |
| Specification: | 5.08mm Pitch Female 2P Pluggable Type Terminal Blocks Connector | Rows: | 1 row |
| Assembly method: | Pluggable Type 180° | Application: | PCB |
| Material | |||
| Specification Characteristics | Specific material electrical parameters | ||
| Terminal Material: | Brass | Rated current: | 15AMP |
| Terminal Plating: | Tin plating | Rated voltage (VAC): | 300V |
| Contact shrapnel: | Nickel Plated Brass | Contact resistance: | 20mΩ Maxs |
| Printed Circuit Boards: | Through-hole welding type | Electrical strength: | AC1500V/ 1 Minute |
| welding plate size: | 3.5 mm | Insulation resistance: | 1000MA Min. |
| Rubber core material: | PA66 Green (UL94 V-0) | Contact resistance: | 20MΩ Max. |
| Square of line (mm): | 0.4-3.5mm | Use wire diameter (AWG): | 24-14AWG |
| Packing method | Use of the environment | ||
| Sample: | Support samples | Operating temperature range: | -40°C to 105°C |
| Packing method: | Tray packing | Maximum temperature: | 250°C, 5S |

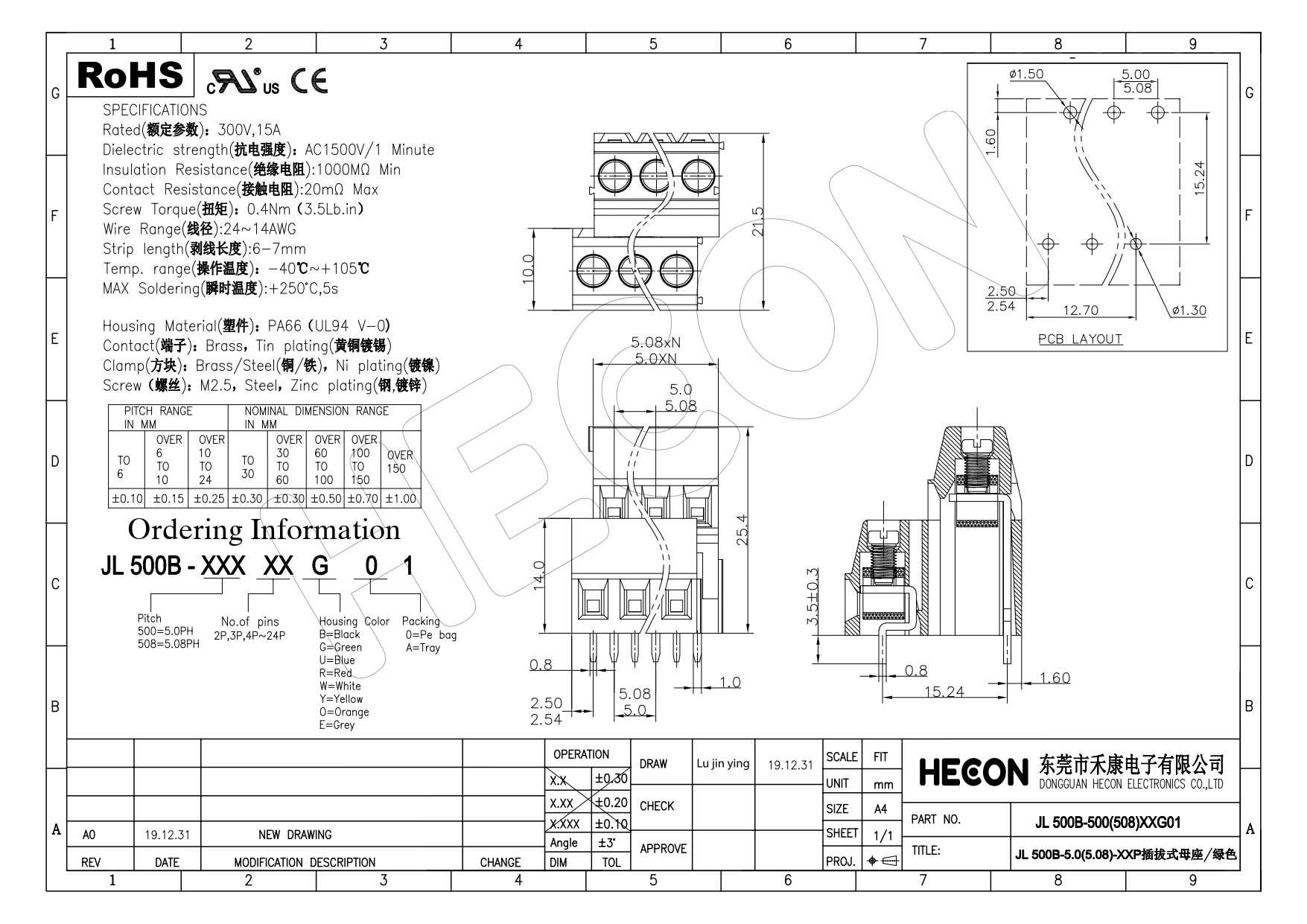

| Engineering Drawings: | Support custom 2D, 3D | Application: | Power & Signal |
| Delivery time: | 1 weeks after order confirmation | Large processing temperature: | EU RoHS Directive 2011/65/EU EU REACH Regulation |
