DIA1.5mm SMT Type Pogo pin
Pogo Pin is a precision connector used in mobile phones and other electronic products. It is widely used in various electronic products and plays a role in signal transmission connection. Pogo pin is a kind of spring probe formed by three basic components of needle shaft, spring and needle tube after riveting and pre-pressing with precision instruments, with a precision spring structure inside. Pogo pin has different appearance according to different applications. The surface coating is generally gold-plated, which can better improve its anti-corrosion function, mechanical properties, electrical properties, etc. Its shape structure is divided into: flat bottom type, plug plate type, bending type, double needle shaft, thread type, welding wire type, side hole type, etc. The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc. Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-60A. Travel range: Refers to the compression stroke of the spring.
The main functions of Pogo Pin include: 1. Charging: Pogo Pin can be used for the charging interface of the device to realize fast and stable charging function. 2. Mechanical fixation: In addition to electrical connection, Pogo Pin also has the function of fixing and supporting to ensure the stability of the connection. 3. RF, video, antenna transmission: Pogo Pin can support the transmission of high-frequency signals, including RF signals, video signals and antenna signals. 4. Data transmission: As a precision electronic hardware material, Pogo Pin is also commonly used in connection with data transmission to support high-speed data transmission.
| Basic product attributes | |||

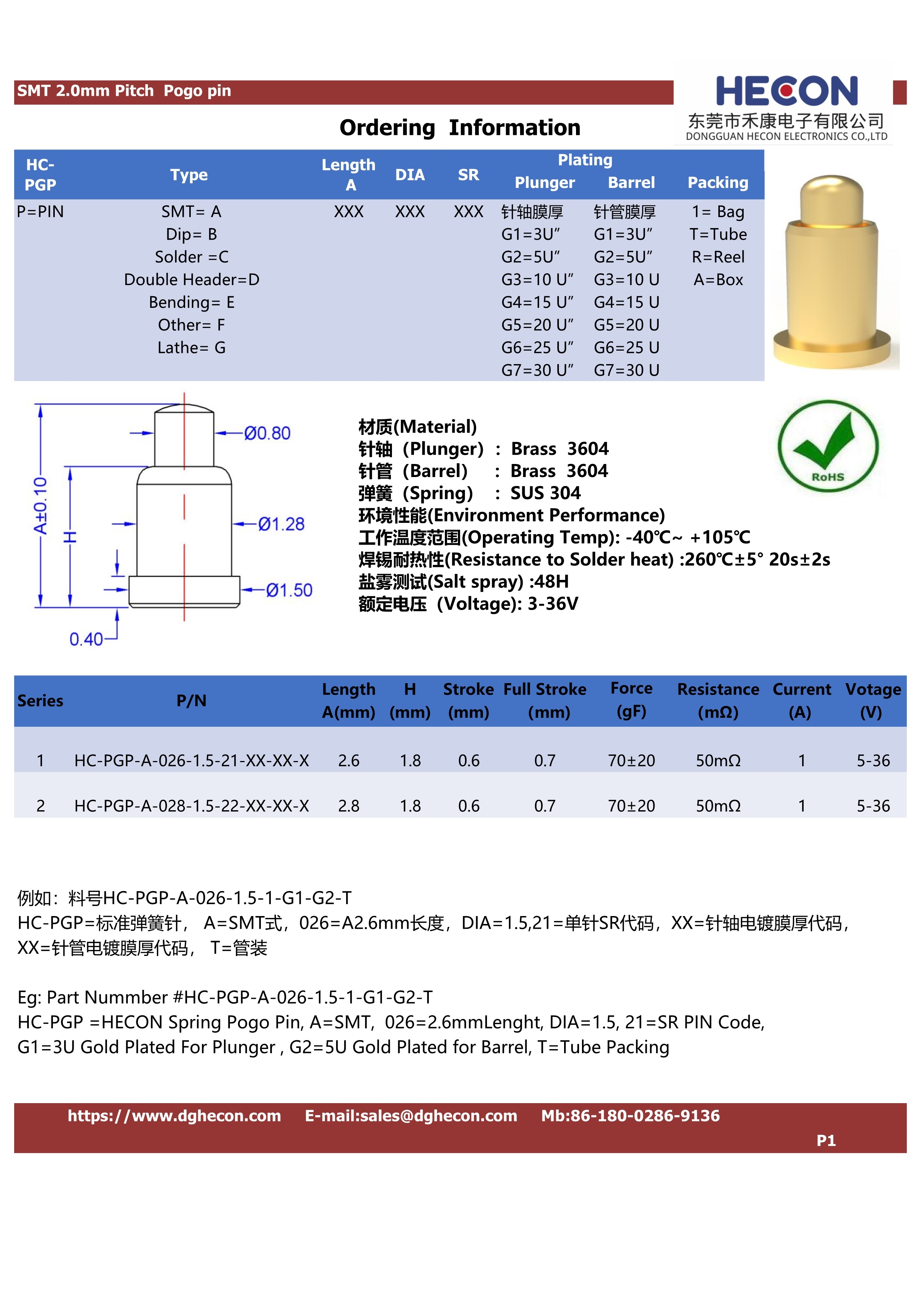

| Material No: | HC-PGP-A-028-1.5-22-XX-XX-X | Length: | 2.6mm to 2.8mm |
| Specification: | DIA1.5mm SMT Type Pogo pin | Type: | SMT type |
| Sample: | Support samples | Plating: | Gold plated 3u' |
| Delivery date of bulk goods: | 2-3 weeks after order confirmation | Diameter: | 2.5mm |
| Material | |||
| Plunger: | Brass 3604 | Spring: | SUS304 |
| Barrel: | Brass 3604 | ||
| Mechanical Performance | Electrical Performance | ||
| Work Stroke: | 0.6mm or Customized | Rated current: | 1A |
| Maximum working stroke: | 0.6mm or Customized | Rated voltage: | 5-36V |
| Working stroke elasticity: | 70g ±20g or Customized | Contact impedance: | 50mΩ MAX |
| Mechanical life: | 100,000 cycles | ||
| Environmental Performance | |||
| Operating temperature range:-40°C 105°C | |||
| Solder heat resistance: 260C /-5 20s /2s | |||
| Salt spray test: 48H | |||
