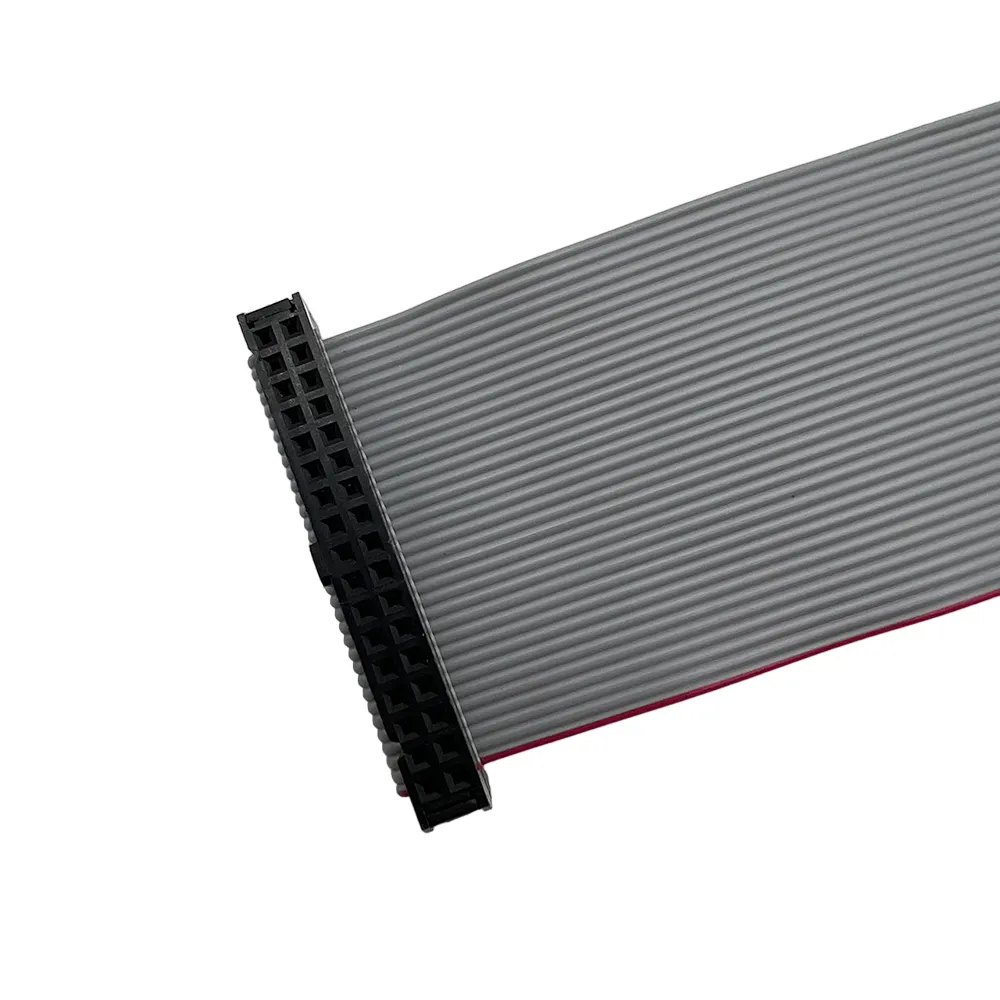

2.54mm IDC ribbon cable assembly IDC 40P Length 150mm Wire Cable
| Product name: | 2.54mm IDC ribbon cable assembly IDC 40P Length 150mm Wire Cable |
| Part number: | HC-F12A-40S0AAB150-01 |
| Production Capacity | 500,000PCS can be produced every month at HECON |
| HECON Support the Trade Terms | EXW / FOB Shenzhen / DAP etc. |
| HECON Support Payment methods | T/T, PayPal, Alibaba Pay, etc. |
| Delivery Time | 3-7 working days for making sample. 15 working days for production. |
| Packaging | PE bag packing or Custom packing |
| Shipping | By sea, By air or by express delivery (DHL/UPS/FEDEX) |
| MOQ | We support the MOQ from 50pcs to 100pcs. |
| Certification | UL, CQC, CE, ROHS, REACH, and SGS Testing reports. |
Product Advantage:
1. IDC Ribbon Cable
High-density flat cables optimized for compact spaces in LED displays and printers.
Flexible Flat Cable (FFC) and Flexible Printed Circuit (FPC) designs for dynamic applications like wearable devices and folding screens.
2. Applications:
IDC Flat cable is mainly used in large household appliances, computer LED display, telecommunications and small electronic equipment, it is characterized by small size, light weight, is the only solution to meet the requirements of miniaturization and mobility. It can be moved, bent and twisted without damaging the wire, and can meet different shapes and special package sizes.
The gray cable has excellent electrical properties, dielectric properties, and heat resistance; it has higher assembly reliability and quality.
3. IDC connector crimping cable:
Same direction 01: FC plugs are all facing one side, with one inside and one outside of the buckle bump.
Reverse 02: One FC plug is placed facing upwards, and the other is facing downwards.
4. Specification:
IDC Flat cable with different spacing is matched with IDC connectors with different spacing, for example: 0.635mm cable with 1.27mm IDC,1.0mm cable with 2.0mm IDC,1.27mm cable with 2.54mm IDC, and common cable specifications are: UL2678 30AWG, UL2651 26AWG 28AWG, and color flat cables. IDC connectors have double contact and single contact distinction, can be selected according to demand, generally Y-type double contact, contact performance will be better.
FAQ
- Q1: What is your MOQ?
MOQ is 100pcs. - Q2: Can we get free samples?
Yes, We can provide free 3-10pcs samples but freight collect and customized part you need pay samples cost. - Q3: What is samples lead time?
Standard samples delivery date about 3-5 days and customized samples need about 7 -10 working day. - Q4: What is your mass production delivery date?
2-3 weeks once confirm your order. - Q5: What is your advantages do you have?
A. HECON is a professional manufacturer in custom wire harness cable assemblies and PCB connectors well customized parts design and solution with manyyears experience.
B. Stability connectors and cable with high value.
C. Support low MOQ100pcs and Fasting Shipping .
D. All Products comply with ROHS and Reach Requirements.
E. One-Stop-Source in China to save your cost and time.
F. We HECON Products quality guarantee over 24 months. - Q6: Why choose HECON company?
A. We HECON respect the customer terms to protect customer privacy projects.
B. High Quality with attractive price .
C. Fast Lead time, RTS delivery date 3-7days, Customized delivery date 10-15days.
D. Happy deal & Honesty to customer and partner.
E. Professional sales and reply your inquiries within 8 hours.
F. HECON‘s Products and service are sold to more than 70 countries with good reputation. - Q7: How about your after -sales -service?
A. Products can guaranteed 24 months once goods left our factory.
B. We HECON deal with your complains within 8 hours.
C. Honesty to customer and partner. - Q8: What is your HECON PCB Connector can be provide?
Terminal Blocks, Board to Board, Pin Header , Female Header, Box Header, SQ PIN , IDC, Dip, Machined (Round)Pin, DIN41612, Micro Match, D-sub, Type-C, RJ11, IC sockets. POGO PIN, POGO PIN Connectors, M Series Circular Connectors. - Q9: What is your advantage cables can be provide?
Custom harness cable from 0.5mm to 6.35mm Housing.
Molding Cables, Type C Cable, DB Cable, ECG Cable, Network Cable, USB Cable, FFC/ IDC Flat Cable with low MOQ and fast lead time. - Q10: What kind of payment does your company support?
We have diversification of payment methods, TT, PayPal, Net days.
| Basic product attributes | |||
| Part Number: | HC-F12A-40S0AAB150-01 | Spacing: | 2.54mm |
| Specification: | 2.54mm IDC ribbon cable assembly IDC 40P Length 150mm Wire Cable | Type: | Same direction |
| Cable length: | 150mm | Cable specifications: | UL2651 28AWG |
| Pin position: | 40Pin | Cable color: | gray red marks |
| Packing method: | Bag packing | Sample: | Support samples and 3-7 days for delivery |
| Specific material electrical parameters | |||
| IDC Connector Specifications: | Wire specifications: | ||
| Rated current: | 1.0AMP | Insulation material: | PVC |
| Contact resistance: | 20mΩ Max | Conductor: | 7/0.10mm (tinned copper) |
| withstand voltage: | 500V AC/DC | IDC gray cable test | |
| Insulation resistance: | 1000MΩ Min | Contact resistance: | 3Ω Max. |
| Working temperature: | -40 ℃ ~ 105 ℃ | Insulation resistance: | 10MO Min. |
| Terminal Material: | Brass | Withstand voltage: | DC300V, 5 seconds |
| Terminal Plating: | Gold Plated/Half Gold Plated Nickel/Tin Plated | Services: | OEM & ODM customization accepted |
| Insulation: | PBT (UL94V-0) | All materials comply with "ROHS" environmental protection standards | |
