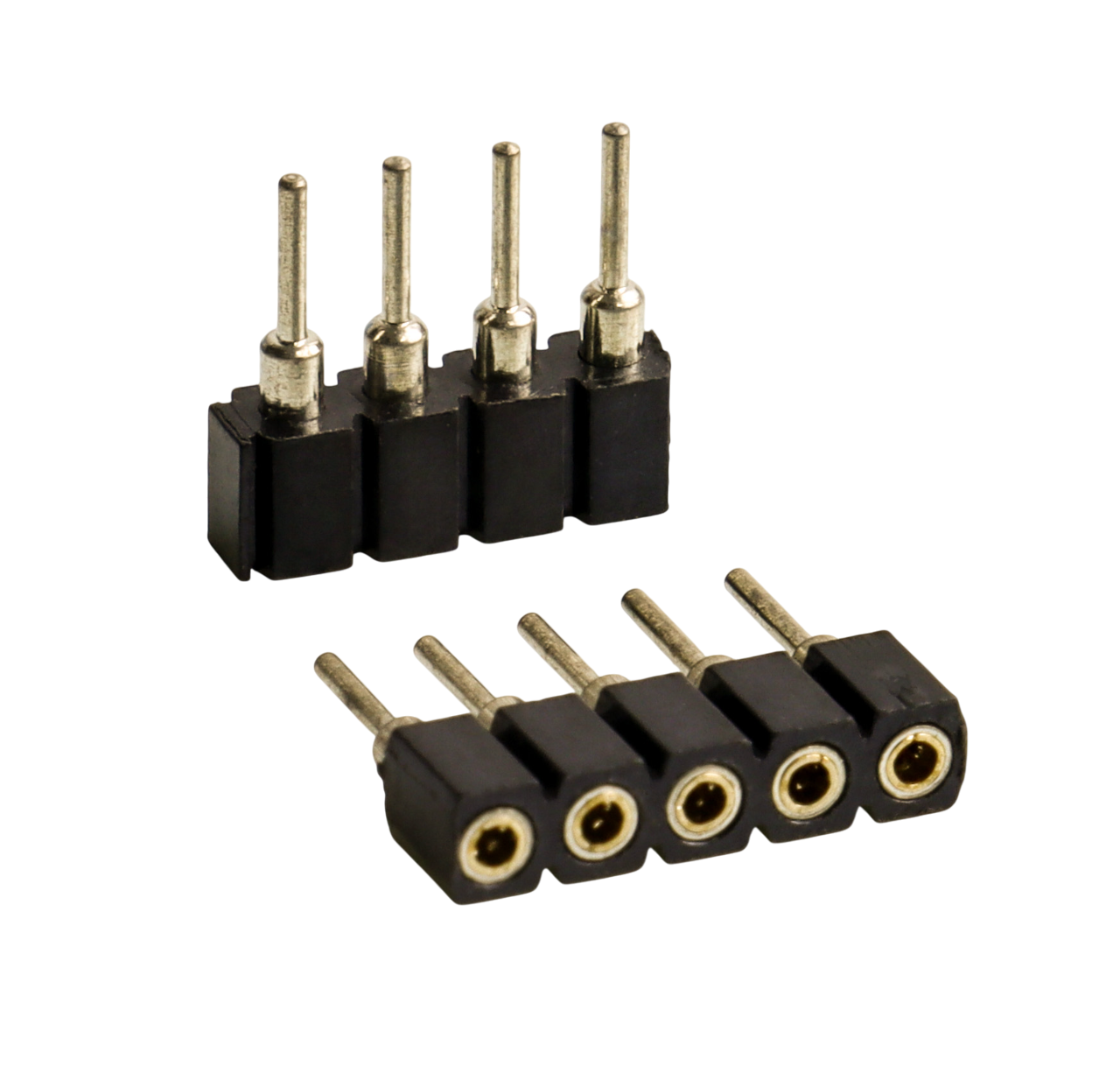

1.778mm Pitch Machined Pin Header H3.0 Single Row 1-16Pin L12.1mm Straight Type
| Product name: | 1.778mm Pitch Machined Pin Header H3.0 Single Row 1-16Pin L12.1mm Straight Type |
| Part number: | HC-MP030-116SXG012101 |
| Production Capacity | 500,000PCS can be produced every month at HECON |
| HECON Support the Trade Terms | EXW / FOB Shenzhen / DAP etc. |
| HECON Support Payment methods | T/T, PayPal, Alibaba Pay, etc. |
| Delivery Time | 3-7 working days for making sample. 15 working days for production. |
| Packaging | PE bag packing or Custom packing |
| Shipping | By sea, By air or by express delivery (DHL/UPS/FEDEX) |
| MOQ | We support the MOQ from 50pcs to 100pcs. |
| Certification | REACH, and SGS Testing reports. |
Product Introduction:
The main function of the 1.778mm Machined Female Header is to act as a bridge between the circuits that are blocked or isolated within the circuit, and to take on the task of current or signal transmission.
The machined female header also known as Female Header is a kind of universal connection device widely used in electronics, electrical appliances and instruments. It is usually used in conjunction with the pin arrangement to form a board-to-board connection, or in the PCB circuit board in electronics, electrical appliances, and instruments, to play the role of current or signal transmission.
Product Advantages:
Such connectors have a number of advantages, including high reliability, long service life, ease of installation, and low cost. The machined female header has high reliability. Through the special structure design, it can effectively avoid poor contact and looseness during plugging and unplugging, and ensure the stable transmission of signals. At the same time, its contact area is large, and it can withstand large current and voltage to ensure the normal operation of the equipment.
Product Applications:
In addition, the material and precision processing technology of the round machined female header make it have a long service life and can withstand the test of complex environments such as high temperature, high pressure, and high frequency. Due to its simple structure, easy installation and maintenance, time and labor costs are saved. shockproof, anti-corrosion and other characteristics, so that it is widely used in outdoor, aviation, aerospace, military and other fields. For example, in the aviation field, the round header platoon can withstand the aerodynamic effects of high-speed flight to ensure the normal operation of the internal electronic equipment of the aircraft.
Product Specifications:
The specifications of the round machined header are various including single row and double row and other types, and the spacing also has a variety of options, such as 0.8mm, 1.0mm, 1.27mm, 2.00mm, 2.54mm, etc., to meet the needs of different electronic equipment connection. Due to the different specifications required by different products, there are also many types of pins, including SMT and plug-in DIP and other packaging usages, which are tailored to customer needs.
FAQ
- Q1: What is your MOQ?
MOQ is 100pcs. - Q2: Can we get free samples?
Yes, We can provide free 3-10pcs samples but freight collect and customized part you need pay samples cost. - Q3: What is samples lead time?
Standard samples delivery date about 3-5 days and customized samples need about 7 -10 working day. - Q4: What is your mass production delivery date?
2-3 weeks once confirm your order. - Q5: What is your advantages do you have?
A. HECON is a professional manufacturer in custom wire harness cable assemblies and PCB connectors well customized parts design and solution with manyyears experience.
B. Stability connectors and cable with high value.
C. Support low MOQ100pcs and Fasting Shipping .
D. All Products comply with ROHS and Reach Requirements.
E. One-Stop-Source in China to save your cost and time.
F. We HECON Products quality guarantee over 24 months.
| Basic product attributes | |||
| Part Number : | HC-MP030-116SXG012101 | Spacing: | 1.778mm |
| Specification: | 1.778mm Pitch Machined Pin Header H3.0 Single Row 1-16Pin L12.1mm Straight Type | Type: | Straight type |
| Gender: | Male | Number of pins: | 1x16P |
| Application: | PCB | Number of rows: | 1 Rows |
| Material | |||
| Raw Materials | Specific material electrical parameters | ||
| Rubber core raw materials: | PPS -GF30-FR-UL94V-0 Or PBT | Rated current: | 2.0AMP |
| Terminal raw materials: | Brass | Contact resistance: | 20mΩ Maxs |
| Other Properties | Withstand voltage: | 60V AC/DC | |
| Sample: | Support samples | Insulation resistance: | 1000mΩ Min |
| Packing method: | Tray /Tube /PE Bag packaging/ | Operating temperature: | -40°c to 105°c |
| Engineering Drawings: | custom 2D, 3D | Contact plating: | Gold plating |
| Delivery Time: | 2-3 weeks after order confirmation | Maximum processing temperature: | 245 ℃ ± 5 ℃ for 5 seconds |
