2.54mm Pitch Pogo Pin Connectors DIP Type Double row 2x04P with cap spring Pogo pin
Part number : HC-PGC-B2.54-085-04-24-G1-01
2.54mm Dip Type Pogo Pin Connectors 2x04Pin
Product Description
Engineering Drawings
Specifications
3D Presentation
| Product name: | 2.54mm Pitch Pogo Pin Connectors DIP Type Double row 2x04P with cap spring Pogo pin |
| Part number: | HC-PGC-B2.54-085-04-24-G1-01 |
| Production Capacity | 500,000PCS can be produced every month at HECON |
| HECON Support the Trade Terms | EXW / FOB Shenzhen / DAP etc. |
| HECON Support Payment methods | T/T, PayPal, Alibaba Pay, etc. |
| Delivery Time | 3-7 working days for making sample. 15 working days for production. |
| Packaging | PE bag packing or Custom packing |
| Shipping | By sea, By air or by express delivery (DHL/UPS/FEDEX) |
| MOQ | We support the MOQ from 50pcs to 100pcs. |
| Certification | UL, CQC, CE, ROHS, REACH, and SGS Testing reports. |
2.54mm Pogo Pin connectors Advantages:
- 1. High Durability : Withstand 10,000–100,000+ mating cycles, ideal for frequently connected devices like charging docks or wearables .
- 2. Space-Saving & Lightweight: Miniaturized versions fit ultra-thin products (e.g., TWS earbuds, smartwatches) without sacrificing current capacity .
- 3. Stable Current/Signal Transmission: Gold-plated surfaces ensure low contact resistance (<30mΩ) and support up to 10A currents or 10Gbps high-frequency signals .
- 4. Vibration/Tolerance Resilience: Spring mechanism compensates for misalignment, thermal expansion, and shocks .
- 5. Easy Assembly: Simplify PCB layouts with solder-in, press-fit, or plastic-carrier mounting options .
Pogo Pin Connectors Applications:
- 1. Consumer Electronics: MagSafe chargers (Apple), Bluetooth earbud charging cases, and smartphone battery connectors.
- 2. Industrial & Medical Equipment: Waterproof probes, test fixtures, and portable diagnostic tools.
- 3. High-Power Systems: E-bike charging ports, drones, and communications base stations.
Spring-loaded connectors Pitch selection:
- Pogo Pin connector Pitch can be divided into: 1.27mm,2.0mm,2.5mm,2.54mm,3.0mm,4.0mm, plastic materials commonly used PA46 black.
Pogo Pin connector type selection:

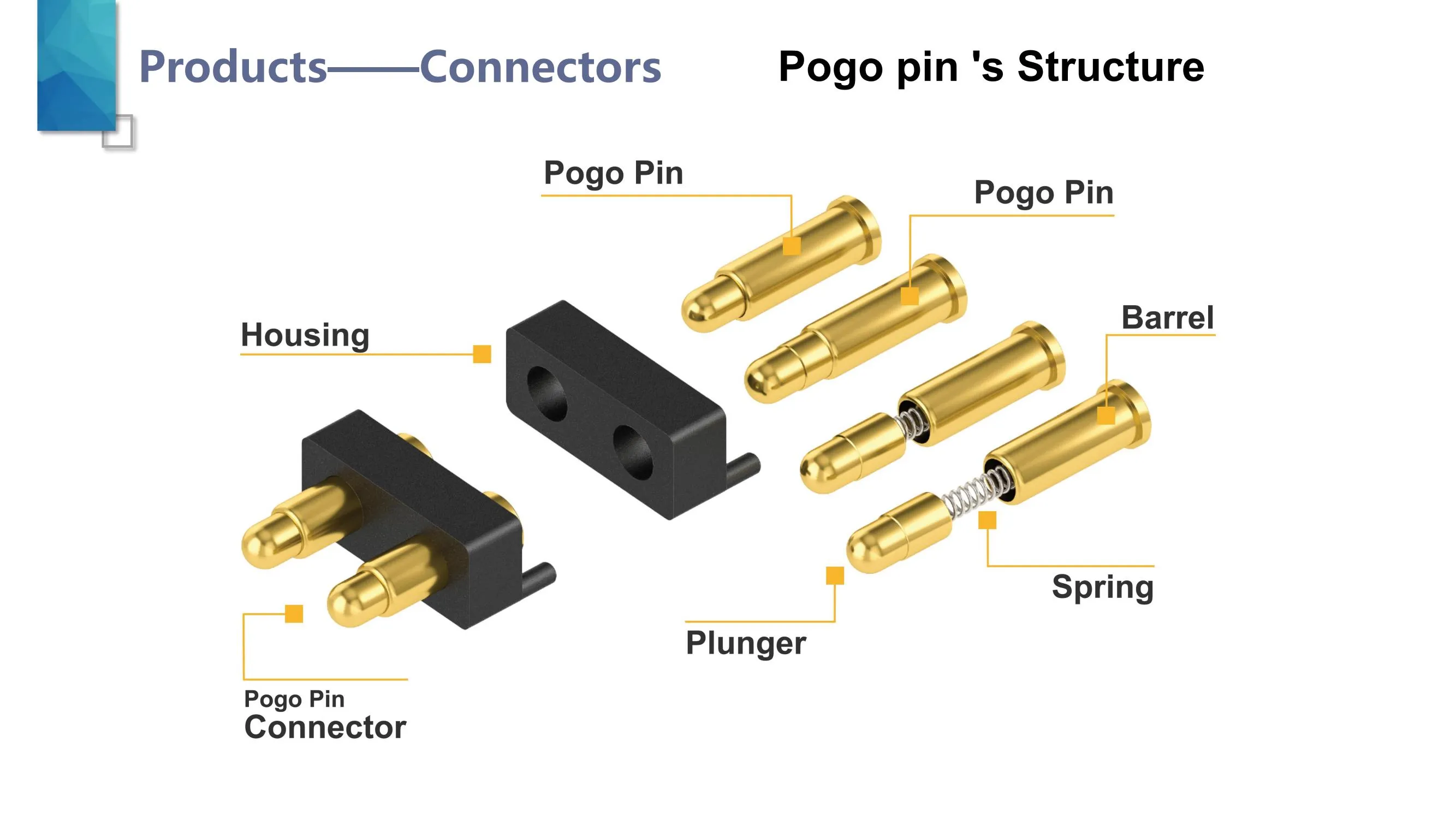

- Its shape structure is divided into: Dip type, SMT type, bending type, double-Ended Pin, thread type, soldering cup type, side hole type, etc.
- The internal structure is divided into: back drilling type, slicing slope, slicing slope with round ball, through hole type, tail plug type, double head type, etc.
Plating selection: regular gold plating, nickel plating, etc. Current range: regular 0.5-3A, high current 5-60A. Travel range: Refers to the compression stroke of the spring.
Why Clients Choose Hecon
- Factory-direct pricing with flexible OEM customization
- Over 10 years of experience as a cable and electronic connectors manufacturer
- Professional Connectors & Cable Assemblies Solution Provider
- More than 12 months of after-sales guarantee service
- Fast delivery | Controllable cost | One-stop service for connectors and wiring harnesses
| Basic product attributes | |||
| Part number : | HC-PGC-B2.54-085-04-24-G1-01 | Pitch: | 2.54mm |
| Specification: | 2.54mm Pitch Pogo Pin Connector DIP Type Double row 2x04P with cap spring Pogo pin | Type: | DIP Type |
| Gender: | Male | Number of stitches: | 2x4P |
| Sample: | Support samples | Number of lines: | 2 row |
| Material | |||
| Raw material | Mechanical Performance | ||
| Needle shaft: | Brass 3604 | Working Stroke: | 1.0mm or Customized |
| Housing: | PA6T Black | Maximum Working Stroke: | 1.4mm or Customized |
| PIN Plating: | Gold Flash 3U” | Spring Force: | 70g±20g or Customized |
| Electrical Performance | Mechanical Life: | 100,000 cycles | |
| Rated current: | 1A | ||
| Rated voltage: | 12V | Environmental Performance | |
| Contact Resistance: | 30mΩ MAX | Operating Temp: | -40 °c 105 °c |
| Other Properties | Resistance to solder heat: | 260℃±5℃ 20s±2s | |
| Delivery date of bulk goods: | 2-3 weeks after order confirmation | Salt Spray: | 48H |
